Series R01 Tension and Compression Force Sensors

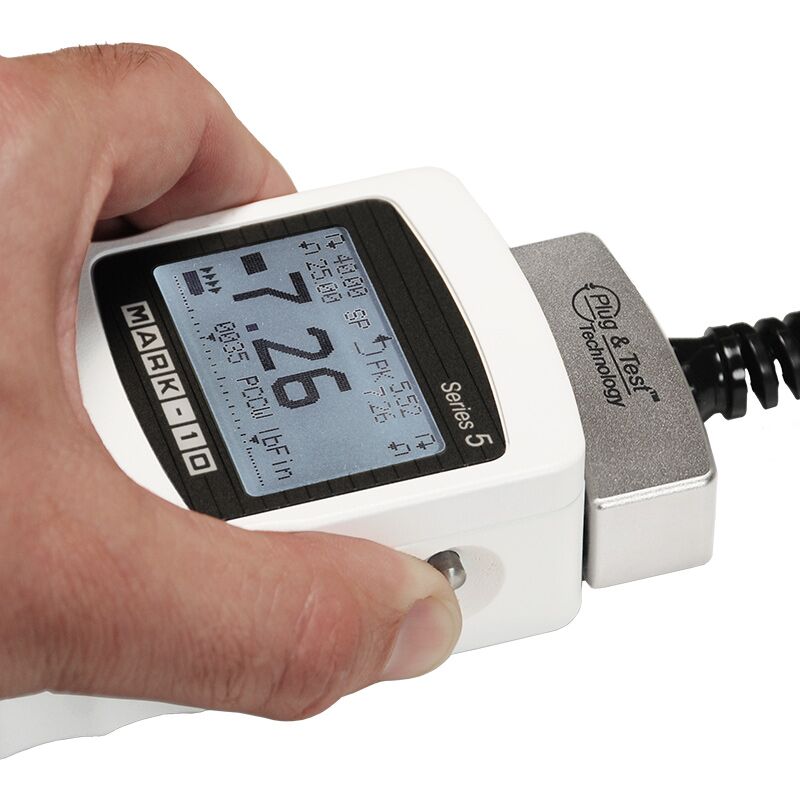

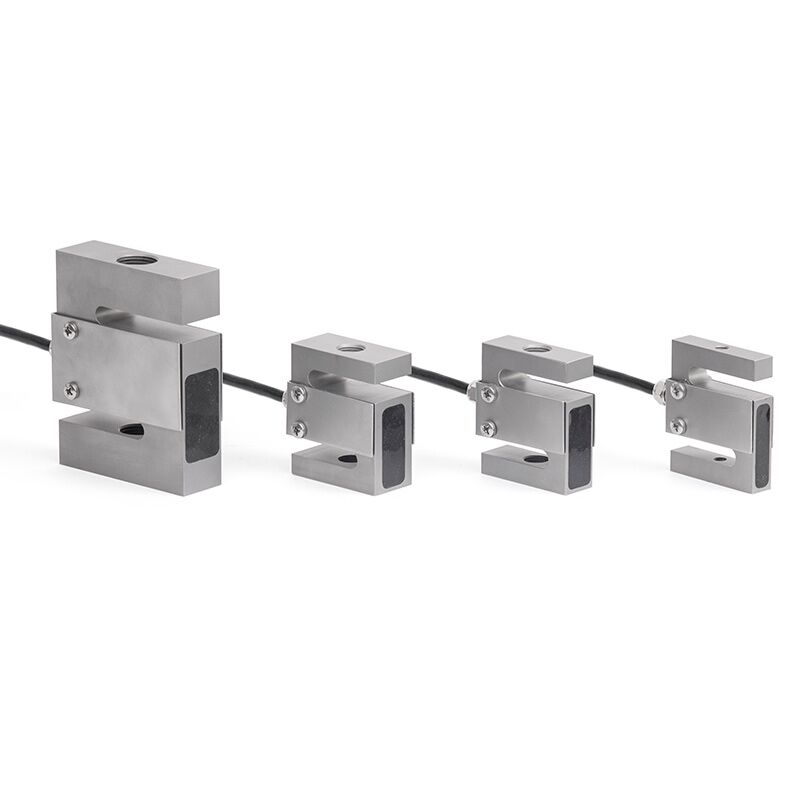

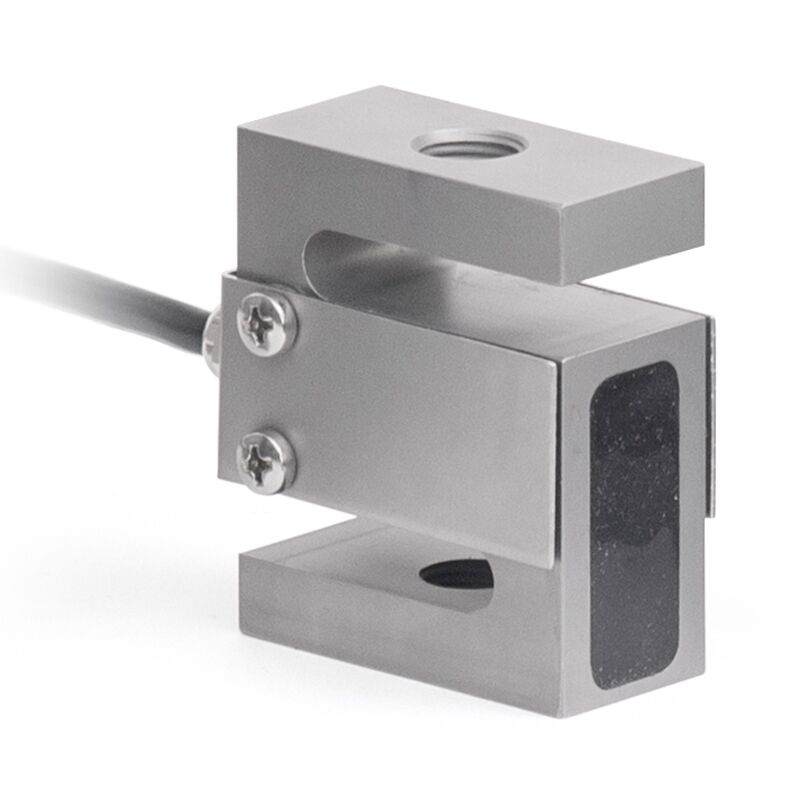

Series R01 rugged smart sensors are designed for measuring tension and compression force, with applications in virtually every industry. Durable S-Beam design with threaded holes on two sides allows for many configurations. Capacities available from 50 to 10,000 lbF (250 N to 50 kN). Compatible with Mark-10 indicators (sold separately) through unique Plug & Test® technology.

Description
Additional information

Features:

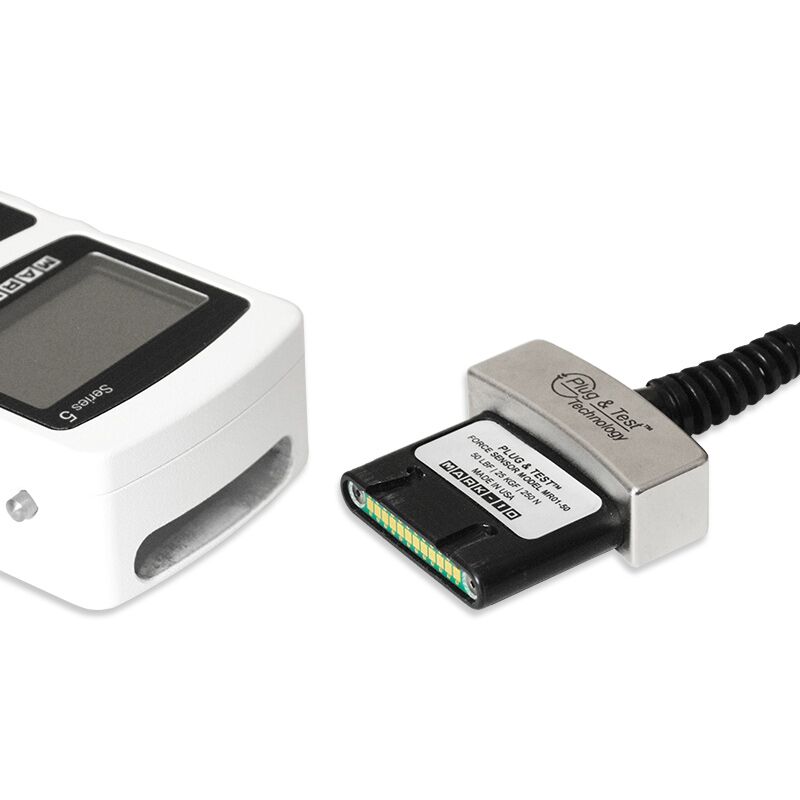

Member of the Plug & Test^® family of interchangeable sensors and indicators
Measures tensile and compressive forces
NIST-traceable certificate of calibration with data is included.
A combined certificate for the sensor and an indicator is available at time of order, part no. CERT-SI.
Warranty: 3 years

Shipping Weight	3 lb
Model	MR01-50 Force sensor (50 lbF / 250 N), MR01-100 Force sensor (100 lbF / 500 N), MR01-200 Force sensor (200 lbF / 1 kN), MR01-300 Force sensor (300 lbF / 1.5 kN), MR01-500 Force sensor (500 lbF / 2.5 kN), MR01-750 Force sensor (750 lbF / 3.75 kN), MR01-1000 Force sensor (1000 lbF / 5 kN), MR01-1500 Force sensor (1500 lbF / 7.5 kN), MR01-2000 Force sensor (2000 lbF / 10 kN), MR01-5000 Force sensor (5000 lbF / 25 kN), MR01-10000 Force sensor (10000 lbF / 50 kN)

Shipping Weight

3 lb

Model

MR01-50 Force sensor (50 lbF / 250 N), MR01-100 Force sensor (100 lbF / 500 N), MR01-200 Force sensor (200 lbF / 1 kN), MR01-300 Force sensor (300 lbF / 1.5 kN), MR01-500 Force sensor (500 lbF / 2.5 kN), MR01-750 Force sensor (750 lbF / 3.75 kN), MR01-1000 Force sensor (1000 lbF / 5 kN), MR01-1500 Force sensor (1500 lbF / 7.5 kN), MR01-2000 Force sensor (2000 lbF / 10 kN), MR01-5000 Force sensor (5000 lbF / 25 kN), MR01-10000 Force sensor (10000 lbF / 50 kN)
