Eye end adapters

These adapters provide a commonly accepted industry method of attaching fixtures to load cells and test frames. They prevent grip rotation and allow for quick removal and installation.

Several thread sizes and variations are available to suit most common test frames, load cells, grips, and force gauges. Eye ends and adapters are available individually or in kits.


Data Sheet





Ordering Information Kits Individual Components


The illustrations below depict typical mounting configurations:

Load Cell / Test Frame Configuration Force Gauge Configuration


Part No. Description
1 G1079 Lock ring, 3/4-16
2 G1081
G1081-1
G1018-2
G1081-3
Eye end, #10-32M
Eye end, 5/16-18M
Eye end, 1/2-20M
Eye end, 1/4-28M
3 G1080 Anchor pin
4 G1083
G1083-1
G1083-2
Eye end adapter, #10-32M
Eye end adapter, 5/16-18M
Eye end adapter, 1/2-20M
5 G1084
G1084-1
G1084-2
Washer, 0.20 ID
Washer, 0.32 ID
Washer, 0.51 ID
6 G1082
G1082-1
Eye end, #10-32F
Eye end, 5/16-18F
  G1088 Spanner wrench (not shown)


G1084-X Jam Washers

gallery thumbnail gallery thumbnail
Model No. ØA Weight
lb [kg]
G1084 0.20
[5.1]
0.03
[0.01]
G1084-1 0.32
[8.2]
0.03
[0.01]
G1084-2 0.51
[12.9]
0.03
[0.01]

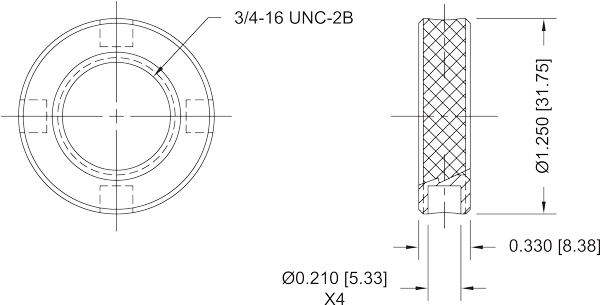

G1079 Lock Ring

gallery thumbnail gallery thumbnail
Weight
lb [kg]
0.07
[0.03]

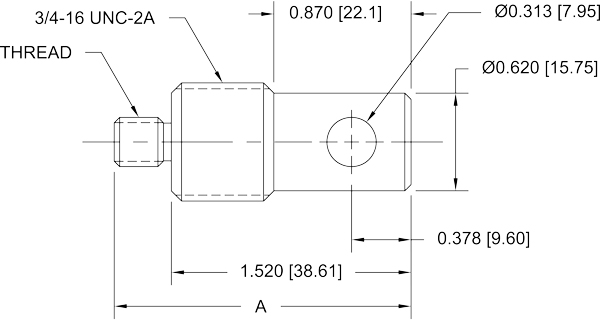

G1081-X Eye Ends

gallery thumbnail gallery thumbnail
Model No. A Thread Weight
lb [kg]
Capacity
lbF [N]
G1081 1.82
[46.2]
#10-32 0.13
[0.06]
200
[1,000]
G1081-1 1.88
[47.8]
5/16-18 0.14
[0.06]
200
[1,000]
G1081-2 2.02
[51.3]
1/2-20 0.15
[0.07]
500
[2,500]
G1081-3 1.87
[47.5]
1/4-28 0.13
[0.06]
2,000
[10,000]

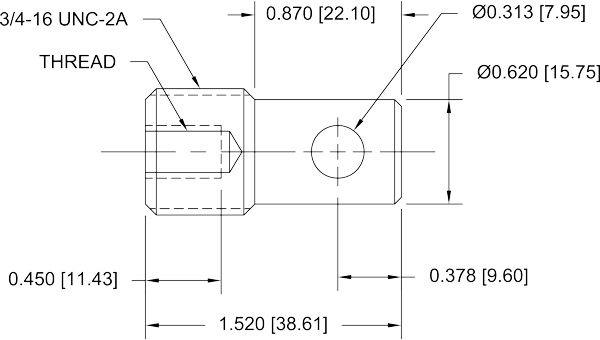

G1082-X Eye Ends

gallery thumbnail gallery thumbnail
Model No. Thread Weight
lb [kg]
Capacity
lbF [N]
G1082 #10-32 0.13
[0.06]
200
[1,000]
G1082-1 5/16-18 0.14
[0.05]
500
[2,500]

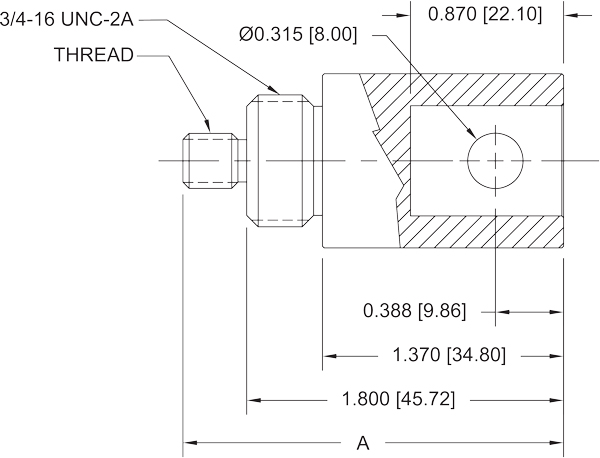

G1083-X Eye Ends

gallery thumbnail gallery thumbnail
Model No. A Thread Weight
lb [kg]
Capacity
lbF [N]
G1083 2.10
[53.3]
#10-32 0.26 [0.12] 200
[1,000]
G1083-1 2.16
[54.9]
5/16-18 0.26 [0.12] 500
[2,500]
G1083-2 2.30
[58.4]
1/2-20 0.28 [0.13] 2,000 [10,000]



G1080 Anchor Pin

gallery thumbnail gallery thumbnail
Weight
lb [kg]
0.06
[0.03]

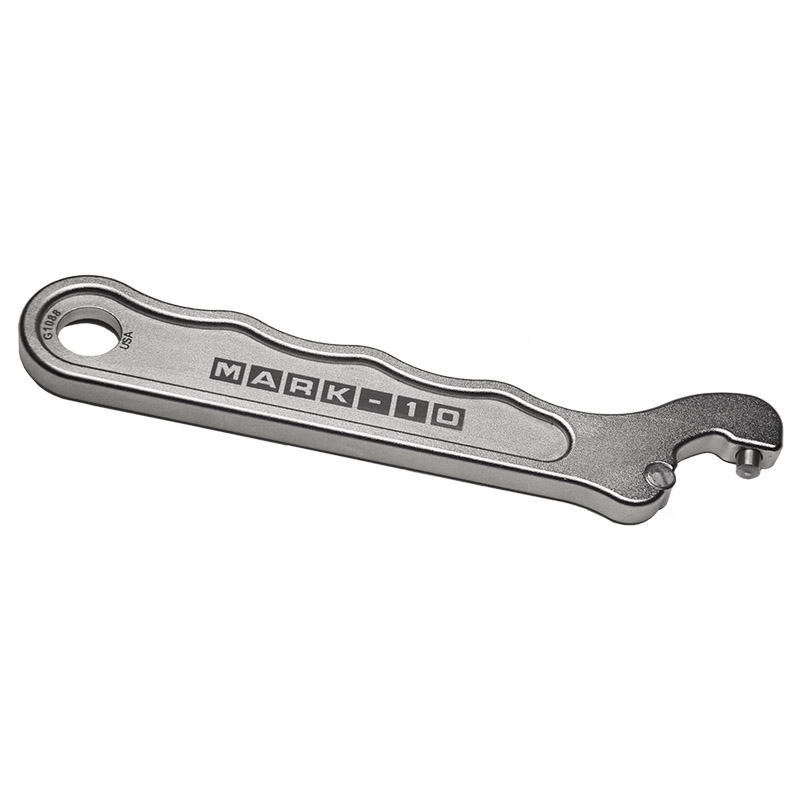

G1088 Spanner Wrench

gallery thumbnail



Individual Components
Model No. Description US Price
G1079 Lock ring $15.00
G1080 Anchor pin $15.00
G1081 Eye end, #10-32M $25.00
G1081-1 Eye end, 5/16-18M $25.00
G1081-2 Eye end, 1/2-20M $25.00
G1081-3 Eye end, 1/4-28M $25.00
G1082 Eye end, #10-32F
$25.00
G1082-1 Eye end, 5/16-18F $25.00
G1083 Eye end adapter, #10-32M $25.00
G1083-1 Eye end adapter, 5/16-18M $25.00
G1083-2 Eye end adapter, 1/2-20M $25.00
G1084 Washer, 0.20 ID $10.00
G1084-1 Washer, 0.32" ID $10.00
G1084-2 Washer, 0.51" ID $10.00
G1088 Spanner wrench $32.00



Base / Load Cell Adapter Kits Grip Adapter Kits Load Cell / Force Gauge
Adapter Kits
AC1047 / AC1047-1 /
AC1047-2 / AC1047-3
AC1046 / AC1046-1 / AC1046-2 AC1045 / AC1045-1 / AC1045-2
Consist of: Consist of: Consist of:
  • G1081 / G1081-1 / G1081-2 /
    G1081-3 eye end - qty. 1
  • G1080 anchor pin - qty. 1
  • G1079 lock ring - qty. 2
  • G1083 / G1083-1 / G1083-2
    eye end adapter - qty. 1
  • G1079 lock ring - qty. 1

  • G1082 / G1082-1 / G1081-2
    eye end - qty. 1
  • G1084 / -1 / -2 washer - qty. 1
  • G1079 lock ring - qty. 2
  • G1080 anchor pin - qty. 1


Kits
Model No. Description Compatibility US Price
AC1047 Base / load cell adapter kit, #10-32M - Test stand bases w/ #10-32 mounting
- Series R03 load cells
$55.00
AC1047-1 Base / load cell adapter kit, 5/16-18M - Test stand bases w/ 5/16-18 mounting
$55.00
AC1047-2 Base / load cell adapter kit, 1/2-20M - Test stand bases w/ 1/2-20 mounting
- MR01-500 / -1000 / -2000 load cells
$55.00
AC1047-3 Base / load cell adapter kit, 1/4-28M - MR01-50 / -100 / -200 load cells $55.00
AC1046 Grip adapter kit, #10-32M - Grips with #10-32 mounting $45.00
AC1046-1 Grip adapter kit, 5/16-18M - Grips with 5/16-18 mounting $45.00
AC1046-2 Grip adapter kit, 1/2-20M - Grips with 1/2-20 mounting $45.00
AC1045 Force gauge adapter kit, #10-32F - Force gauges up to 100 lbF $85.00
AC1045-1 Force gauge adapter kit, 5/16-18F - 200 lbF & 500 lbF force gauges $85.00
AC1045-2 Force gauge adapter kit, 1/2-20M - M5-1000 & M5-2000 force gauges $85.00
