M5-2-COF Coefficient Of Friction Gauge

The M5-2-COF coefficient of friction (COF) gauge is an integral part of a COF testing system, typically including a motorized test stand and COF fixture. With a capacity of 2 lbF [10 N], the gauge can be used to measure friction for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients are displayed on the backlit LCD, and are calculated from a user-programmable sled weight.

Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. Configurable password protects against unauthorized changes to settings.

The M5-2-COF may also be used for a number of common tension and compression testing applications. The gauge is based on Mark-10's Series 5 advanced digital force gauges, and includes the series' full set of functions and settings.

The M5-2-COF includes MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data saved in the gauge's memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.



Use MESURgauge Software to tabulate, graph, and analyze test data (More info)

Downloads Features Optional Equipment Included Accessories

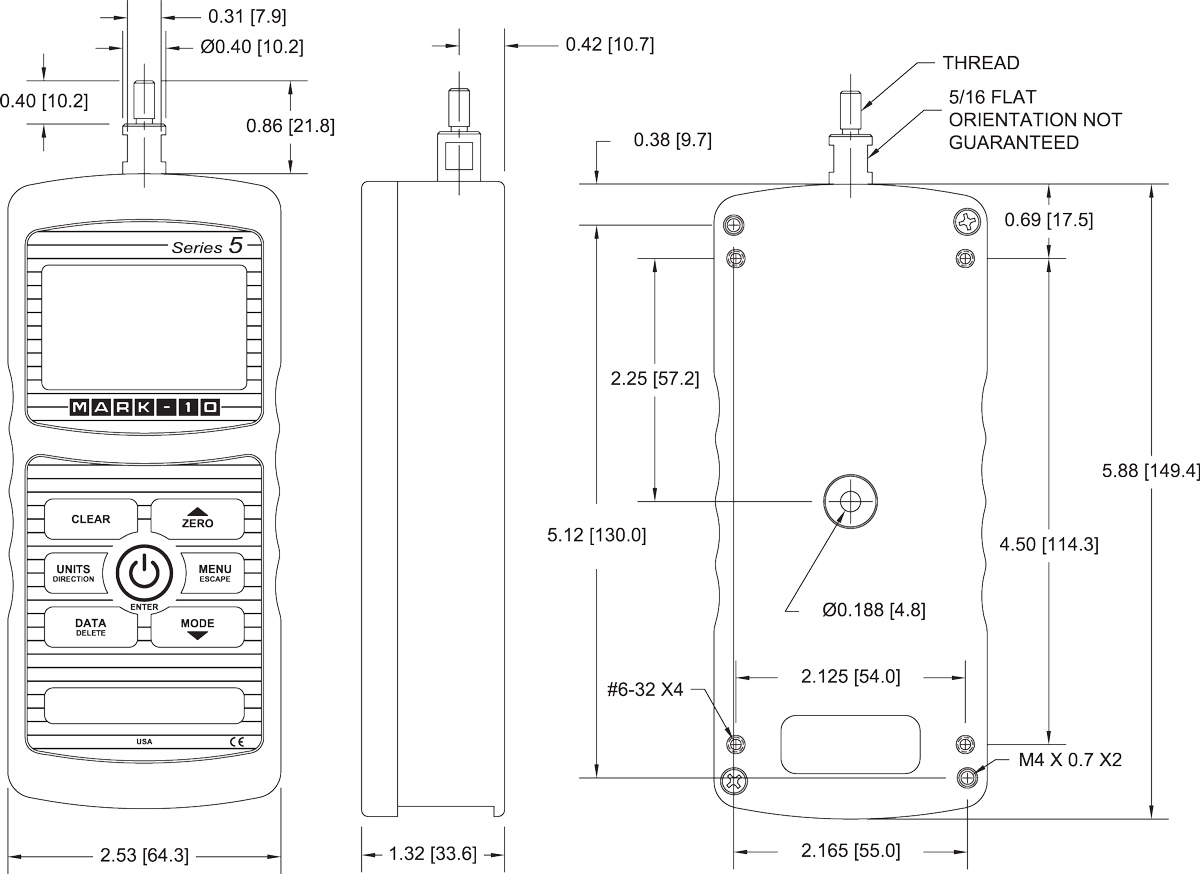

Gallery   Specifications   Ordering Information   Dimensions



  Data Sheet User's Guide




gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail

gallery thumbnail gallery thumbnail



  • Calculates static and kinetic coefficients of friction
  • Configurable sled weight (100 - 1000 g)
  • USB, RS-232, Mitutoyo, and analog outputs
  • 1,000-point data memory with statistics and outputs
  • Programmable set points, with indicators and outputs
  • Live load bar graph with set point markers
  • Configurable audio alarms and key tones
  • Password protection, configurable for individual keys and calibration
  • Fixture + Gauge Kit is available






Capacity x Resolution: 5 x 0.001 COF*, 2 x 0.0005 lbF, 32 x 0.01 ozF, 1 x 0.0002 kgF,
1000 x 0.2 gF, 10 x 0.002 N
Accuracy:   ±0.1% of full scale
Sampling rate:   7,000 Hz
Power:   AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life:   Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Outputs:   USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ± 1 VDC, ± 0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe overload:   150% of full scale (display shows "OVER" at 110% and above)
Weight:   1.0 lb [0.45 kg]
Included items:   Carrying case with hook, chisel, cone, V-groove, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), and NIST-traceable certificate of calibration with data.
Warranty:   3 years (see individual statement for further details)

* Depends on the sled weight. For a 200 g weight, the COF capacity is 5. COF resolution is fixed at 0.001.




G1086 COF Fixture
Features a large work table, 200 g sled, sample clamp, cable, and pulley. Available with the M5-2-COF gauge as a kit (see Ordering Information below).



ESM303 motorized test stand -
Features programmable speed, travel limits, and a long list of available functions and features such as travel measurement, PC control, cycling, and more.

  MESUR™gauge Software
Tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more.



Model Description US Price
M5-2-COF COF gauge $1,295.00
COF-K1 COF gauge with G1086 coefficient of friction fixture $2,550.00
Above models include 110V AC adapters. Add suffix ‘E’ for euro plug (220V), ‘U’ for UK plug (220V), or 'A' for Australian plug (220V).
Example: M5-2-COFE, COF-K1U

Additional Items to Consider
15-1004 MESUR™gauge software $495.00
09-1165 Spare USB cable $30.00
08-1026 Spare rechargeable battery $20.00
AC1030 Spare AC adapter, 110V $40.00
AC1031 Spare AC adapter, 220V EUR $40.00
AC1032 Spare AC adapter, 220V UK $40.00
AC1035 Spare AC adapter, 220V AUS $40.00
14-1046 Mouting Plate for Mark-10 force gauges $50.00


  Hook G1028
  Extension Rod G1024
  Cone G1026
  Chisel G1025
  V-Groove G1027
  Flat G1029



Thread
#10-32 UNF
