Coefficient of Friction Fixture
G1086
The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the M5-2-COF gauge.

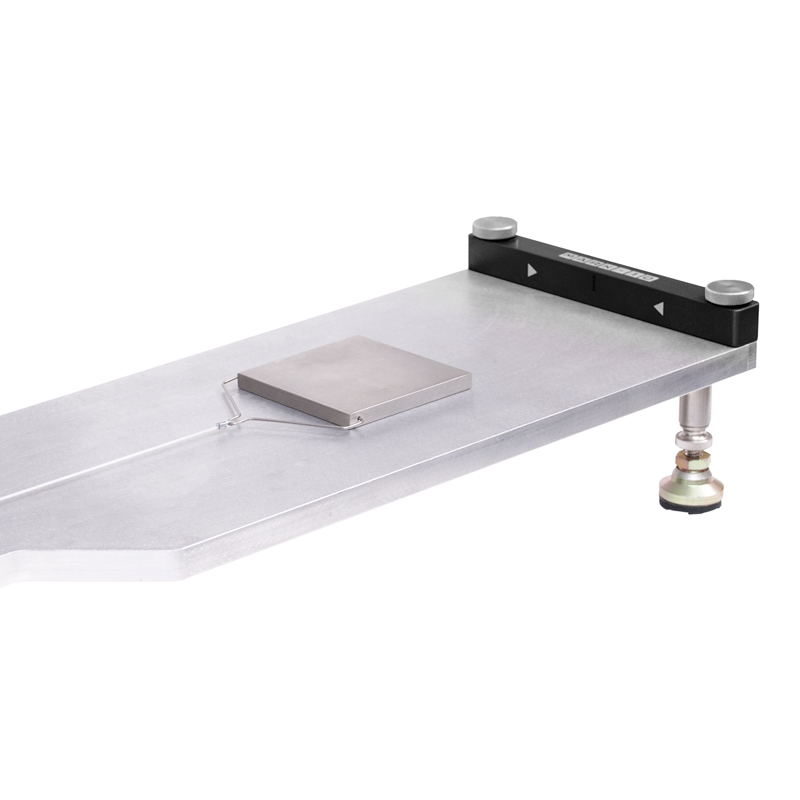

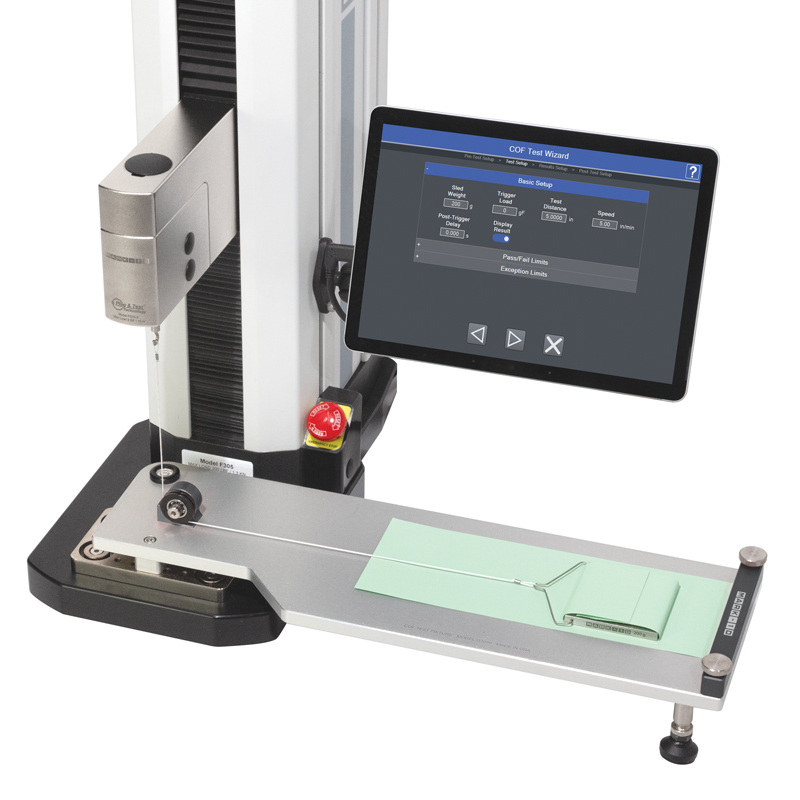

The fixture includes a large work table with sample clamp, level, 200 g sled, cable, and low-friction pulley. The fixture is directly compatible with the M5-2-COF gauge, ESM303, ESM301, and ESM750 / ESM1500 test stands (optional mounting posts required for ESM750 / ESM1500; see below).
Features
- Allows for static and kinetic COF measurements
- Includes 200 g sled and sample clamp
- Mounts directly to the ESM303 motorized test stands
- Optional mounting posts for ESM750 and ESM1500 test stands (optional AC1055 mounting plate is required for the test stand)
- Fixture + Gauge Kit is available (see Ordering Information)
Specifications
- Table surface material:
6061 T6 aluminum - Sled material:
303 SS - Maximum sled travel:
10.5 in (265 mm)
Dimensions
IN [MM]
Ordering Information
| Model | Description | US Price |
|---|---|---|
| G1086 | Coefficient of friction fixture | $1,500.00 |
| Additional Items to Consider | ||
| COF-K1* | Kit – G1086 COF fixture + M5-2-COF force gauge | $2,550.00 |
| AC1076-1 | Pair of mounting posts for ESM750 test stands (AC1055 mounting plate required) | $50.00 |
| AC1076-2 | Pair of mounting posts for ESM1500 test stands (AC1055 mounting plate required) | $50.00 |
*: Includes a 110V AC adapter. Add suffix ‘E’ for euro plug (220V),‘U’ for UK plug (220V) or ‘A’ for Australian plug (220V). Ex: COF-K1E
