Grips & Attachments


Mark-10 grips and attachments are integral components of testing systems, designed for a wide range of tension, compression, and torque applications. These grips and attachments are able to mount to Mark-10 force gauges, torque gauges, sensors, and test stands. Eye end adapters may be used with some gauges and sensors for quick-change convenience and compatibility with third party equipment.


Data Sheet - All Grips

Quick Links:


Tensile / Pull


Wedge Grips


  • G1061, G1061-1, G1061-2, G1061-3
  • General tensile testing
  • Self-tightening jaws
  • Max. sample thickness: 0.25 in (6.4 mm)
  • Max. sample width: 0.375 in (9.5 mm) / 0.75 in (19.1 mm) / 1.00 in (25.4 mm)
  • 50 – 2,000 lbF (0.25 – 9 kN) capacities
  • $445 to $545

Miniature Wedge Grip


  • G1062
  • General tensile testing of thin / narrow materials
  • Self-tightening jaws
  • Max. sample thickness: 0.09 in (2.3 mm)
  • 100 lbF (500 N) capacity
  • $240

Miniature Component Grip


  • G1003
  • For a variety of small component pull tests
  • Max. sample thickness: 0.07 in (1.8 mm)
  • 30 lbF (150 N) capacity
  • $140

Multi-jaw Grip


  • G1056
  • Pull testing of round and odd shaped items
  • Sample size range: Ø0.40 – 1.25 in (10.2- 31.7 mm)
  • 100 lbF (500 N) capacity
  • $295

Clevis Grip


  • G1077
  • Secures a spring, chain, or other sample during tensile testing
  • 500 lbF (2.5 kN) capacity
  • $120

High Capacity Clevis Grip


  • G1090
  • Secures a spring, chain, or other sample during tensile testing
  • Eye end mounting
  • 2,000 lbF (9 kN) capacity
  • $325

Ribbon Wrap Grip


  • G1111
  • Secures textile webbing, tape, and braided materials during tensile testing
  • Conforms to ASTM D6775
  • 2,000 lbF (10 kN) capacity
  • $725

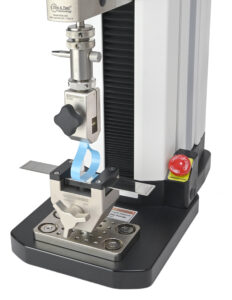

Packaging / Peel / Friction


Film & Paper Grips


  • G1008, G1015-1, G1015-2, G1015-3
  • Tensile testing of film, paper, and other thin materials
  • Conforms to ASTM F88, D1876
  • Max. sample width: 1.25 in (31.8 mm) / 3.00 in (76.2) / 5.00 in (127.0 mm) / 7.00 in (177.8 mm)
  • 100 lbF (500 N) capacity
  • $250 to $350

Pneumatic Film & Paper Grip


  • G1046
  • Tensile testing of film, paper, and other thin materials
  • Conforms to ASTM F88, D1876
  • Max. sample width: 1.57 in (39.9 mm)
  • 100 lbF (500 N) capacity
  • $600

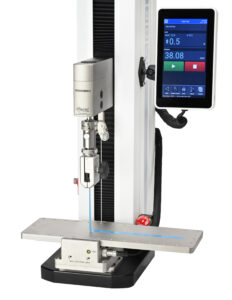

90° Peel Fixture


  • Testing of tapes, films, and packaging
  • Maintains a 90° sample pull angle
  • Optional adjustable angle mounts, for 30°, 45°, and other angles
  • Conforms to: ASTM D6862, D3330, D903
  • 100 lbF (500 N) capacity
  • $1,800

Coefficient of Friction Fixture


  • G1086
  • Static and kinetic COF applications
  • Includes large work table, 200 g sled, cable, and sample clamp
  • Conforms to ASTM D1894
  • $1,500

Score Bending Fixture


  • G1071
  • Score bend testing of fiber board
  • Conforms to TAPPI T829
  • Includes upper and lower dies
  • 50 lbF (250 N) capacity
  • $450

Opening Force Fixture


  • G1072
  • Opening force testing of folded cartons
  • Includes upper and lower dies
  • 50 lbF (250 N) capacity
  • $400

Cork Extraction Fixture


  • G1105
  • Extraction / pull force testing of cork stoppers
  • Conforms to ISO 9727
  • Accommodates up to 1.5 L bottles
  • 200 lbF (1 kN) capacity
  • $1,200

Loop Tack Fixture


  • G1098
  • Adhesive tack testing
  • Test strip with three 1 in2 (25 mm2) test areas
  • Conforms to ASTM D6195
  • 100 lbF (500 N) capacity
  • $825

Flip Cap Grip


  • G1104
  • Flip cap pull testing
  • Spring loaded hook engages the cap’s tab
  • 20 lbF (100 N) capacity
  • $150

Vise / Parallel Jaw


Parallel Jaw Grip, Medium


  • G1101
  • General tensile testing
  • Eye end mounting
  • Max. sample thickness: 1.27 in (32.3 mm)
  • Extended jaw lengths available
  • 200 lbF (1 kN) capacity
  • $325

Parallel Jaw Grip, Large


  • G1100
  • General tensile testing
  • Eye end mounting
  • Max. sample thickness: 1.34 in (34.0 mm)
  • Extended jaw lengths available
  • 2,000 lbF (9 kN) capacity
  • $595

Vise Grip, Standard


  • G1074
  • General tension / compression testing
  • Max. sample thickness: 1.50 in (38.1 mm)
  • 500 lbF (2.5 kN) capacity
  • $295

Vise Grip, Self-Centering


  • G1106
  • General tension / compression testing
  • Self-centering, removable jaws
  • Max. sample thickness: 2.00 in (50.8 mm)
  • 500 lbF (2.5 kN) capacity
  • $750

Wire / Rope / Yarn / Tubing


Wire Terminal Grips


  • G1001, G1001-1, G1001-2
  • Pull testing of crimped terminations
  • Max. sample size: Ø0.375 in (9.5 mm)
  • 200 lbF (1 kN) capacity
  • $230

Dual Roller Grips


  • G1002, G1002-1
  • Pull testing of wires, tubes, and other slender samples
  • 200 lbF (1 kN) capacity
  • $190

Eccentric Roller Grip


  • G1094
  • Pull testing of wire and other materials
  • Max. sample size: 1.25 in thick x 2.36 in wide (32 x 60 mm)
  • Eye end mounting
  • 2,000 lbF (9 kN) capacity
  • $950

Compression / Push / Bend


Compression Plates


  • G1009, G1009-1, G1009-2, G1009-3
  • Compresses samples during testing
  • Max. sample size: Ø2.0 in (50.8 mm) / Ø3.0 in (76.2 mm)
  • 200 lbF (1 kN) / 500 lbF (2.5 kN) capacity
  • Flat and vented versions available
  • $40 to $100

Compression Plates, High Capacity


  • G1087, G1087-1
  • Compresses samples during testing
  • Max. sample size: Ø2.20 in (55.9 mm) / Ø3.78 in (96.0 mm)
  • Eye end mounting
  • 2,000 lbF (9 kN) capacity
  • $100 to $210

Bend Fixtures


  • G1095, G1096, G1097
  • 3-point and 4-point bend testing – mix and match upper and lower fixtures
  • Accommodate a wide range of materials
  • Conform to ASTM C393, C1161, D790
  • 500 lbF (2.5 kN) / 2,000 lbF (10 kN) capacity
  • $945 to $1245

Jacobs Chuck Pin Vise Grips


  • G1010, G1010-1, G1010-2
  • Secures a pin, fixture, or sample during compression or tensile testing
  • 30 lbF (150 N) capacity
  • $100

Padded Attachments


  • G1019, G1020, G1021
  • Padded attachments for ergonomics analysis and job task analysis
  • 500 lbF (2.5 kN) capacity
  • $40 to $80

Rubber tip


  • G1011
  • Simulates a human finger in compression testing
  • 50 lbF (250 N) capacity
  • $30

Puncture Fixture


  • G1110
  • Puncture resistance of plastic films and other thin materials
  • Conforms to ASTM D5748
  • 1,000 lbF (5 kN) capacity
  • $2,450

Torque / Force


Bottle Grip


  • G1023
  • Torque and top-load testing of closures, bottles
  • 100 lbFin (11.3 Nm) torque / 50 lbF (250 N) force capacity
  • $500

Universal V-Jaw Grip


  • G1053
  • Secures bottle caps during torque or pull testing
  • 100 lbFin (11.3 Nm) torque / 50 lbF (250 N) force capacity
  • Sample size range: Ø0.65 – 1.1 in (16.5 – 27.9 mm)
  • $325

Universal Cap Grip


  • G1058
  • Secures bottle caps with movable gripping posts for torque or pull testing
  • 100 lbFin (11.3 Nm) torque / 50 lbF (250 N) force capacity
  • Sample size range: Ø0.2 – 3.5 in (5.1 – 89 mm)
  • $395

Basic Accessories & Attachments


Hooks


  • G1028, G1035, G1038, G1042
  • General pull testing
  • Capacities up to 1,000 lbF (5 kN)
  • $15 to $30

Snap Hook


  • G1107
  • General pull testing
  • Snap clasp provides added safety
  • Swiveling action ensures alignment
  • 500 lbF (2.5 kN) capacity
  • $95

Flat Heads


  • G1029, G1036
  • General compression testing
  • 200 lbF (1 kN) / 500 lbF (2.5 kN) capacity
  • $20 to $25

Extension Rods


  • G1024, G1024-1, G1024-2, G1031, G1031-1, G1031-2
  • General tensile and compression testing
  • 200 lbF (1 kN) / 500 lbF (2.5 kN) capacity
  • $20 to $25

Chisel Points


  • G1025, G1032
  • Compression testing
  • 200 lbF (1 kN) / 500 lbF(2.5 kN) capacity
  • $20 to $25

Cone Points


  • G1026, G1033
  • Compression testing
  • 200 lbF (1 kN) / 500 lbF (2.5 kN) capacity
  • $20 to $25

V-grooves


  • G1027, G1034
  • Compression testing
  • 200 lbF (1 kN) / 500 lbF capacity (2.5 kN)
  • $20 to $25

Adapters


Swivel Adapters


  • G1018-1, G1018-2
  • Align samples for pull testing
  • Connect grips to force gauges and sensors
  • 200 lbF (1 kN) / 500 lbF (2.5 kN) capacity
  • $65

Thread Adapters


  • G1030, G1037, G1039, G1040, G1041, G1047, G1048, G1049, G1050, G1051, G1054
  • American and metric sizes
  • For use between force gauges, test stands, and other grips or attachments
  • Capacities up to 1,000 lbF (5 kN)
  • $15 to $20

Eye end adapters


  • Prevent grip rotation
  • Quick grip installation and removal
  • 15.8 mm dia. sizing, compatible with most load cells, test frames, force gauges, and grips/fixtures
  • Available as individual components or kits
