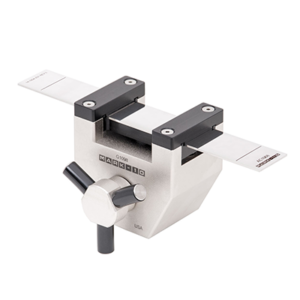

Loop Tack Fixture
G1098

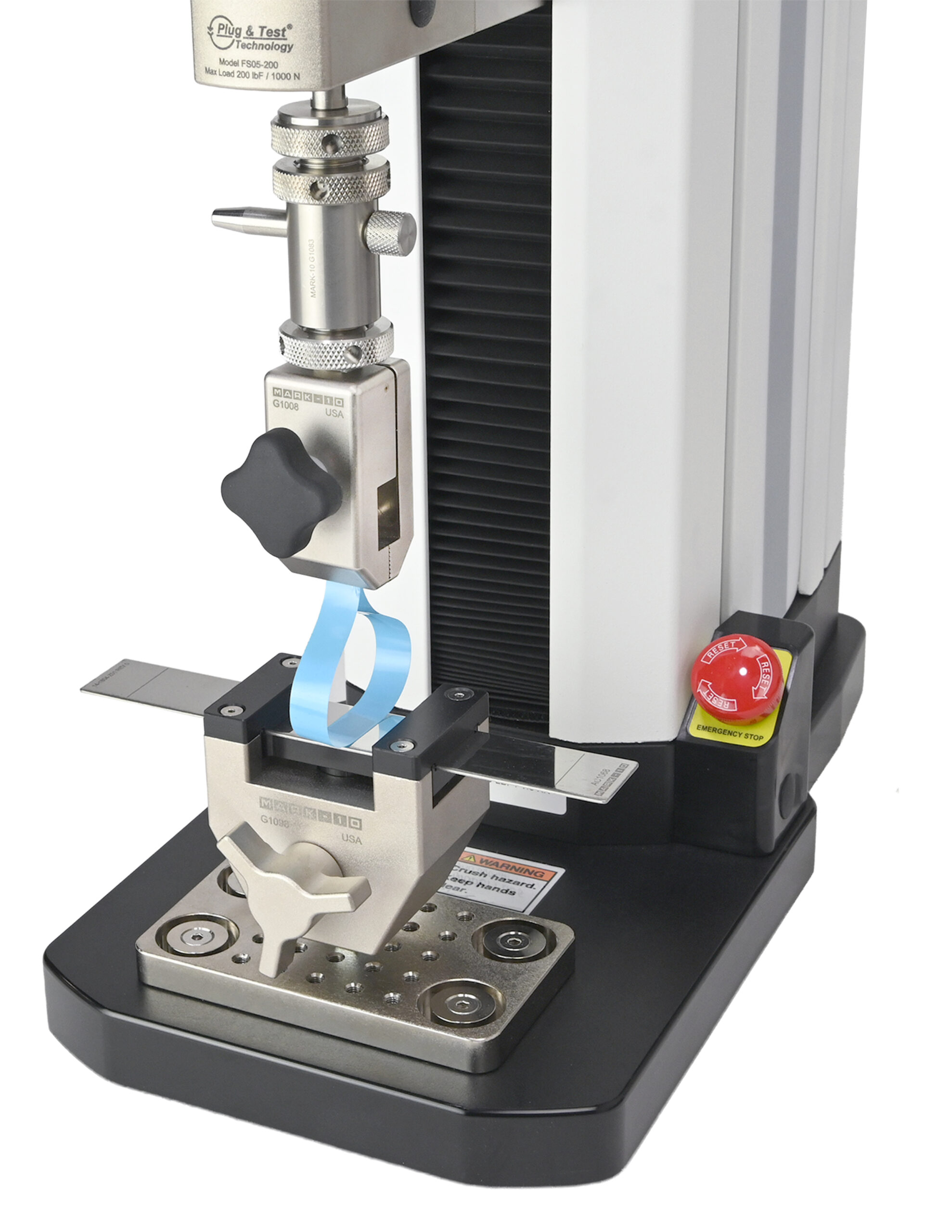

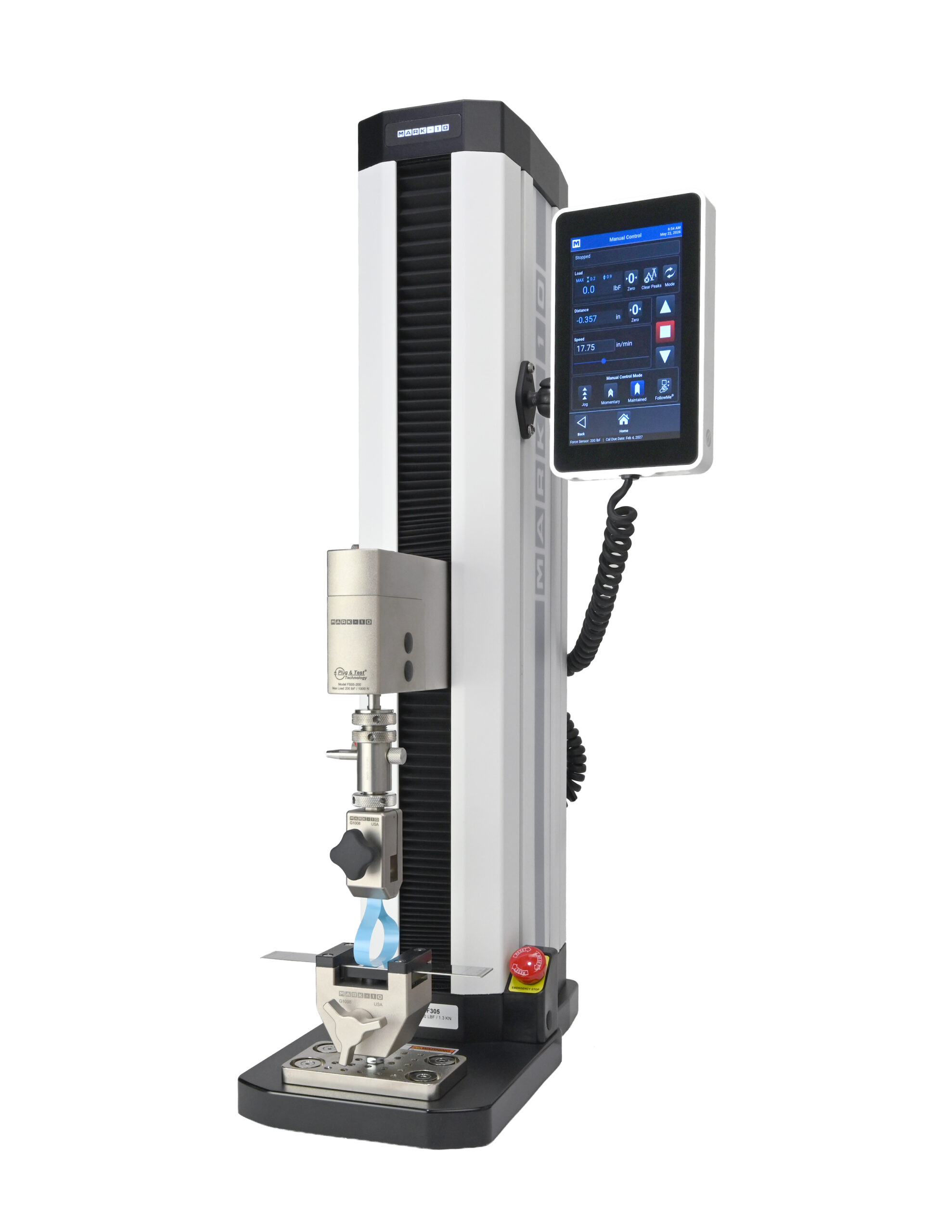

Designed for tack force testing of pressure-sensitive adhesives, in conformance with ASTM D6195 and related standards. A looped sample is loaded onto the test strip, and the closed end of the loop is secured by an upper grip (not included - suggested model: G1008). The test strip may be indexed in three positions, allowing for three tests to be performed between cleaning cycles. The strip is secured and released by a lever-operated clamp. An additional set of three test strips is available.
Features
- Designed for loop tack force testing
- Quick-change mechanism for test strips
- Conforms to ASTM D6195
Specifications
- Capacity:
100 lbF [500 N] - Weight (including one test strip):
1.1 lb [0.5 kg] - Shipping weight: 2 lb [0.9 kg]
- Test strip material:
T304 SS, per ASTM A666 - HS code:
G1098, AC1068: 9024800000 - ECCN
EAR99 - Country of origin:
USA
Optional Equipment
 |
Spare test strips Set of three test strips (one strip is included with the fixture). |
|
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges. |
Dimensions
IN[MM]
Ordering Information
| Model | Description | US Price |
|---|---|---|
| G1098 | Loop tack fixture, 5/16-18F | $980.00 |
| Additional Items to Consider | ||
| AC1068 | Test strips for G1098, set of 3 | $175.00 |
Includes one test strip, 5/16-18 M/M stud with jam nuts.
