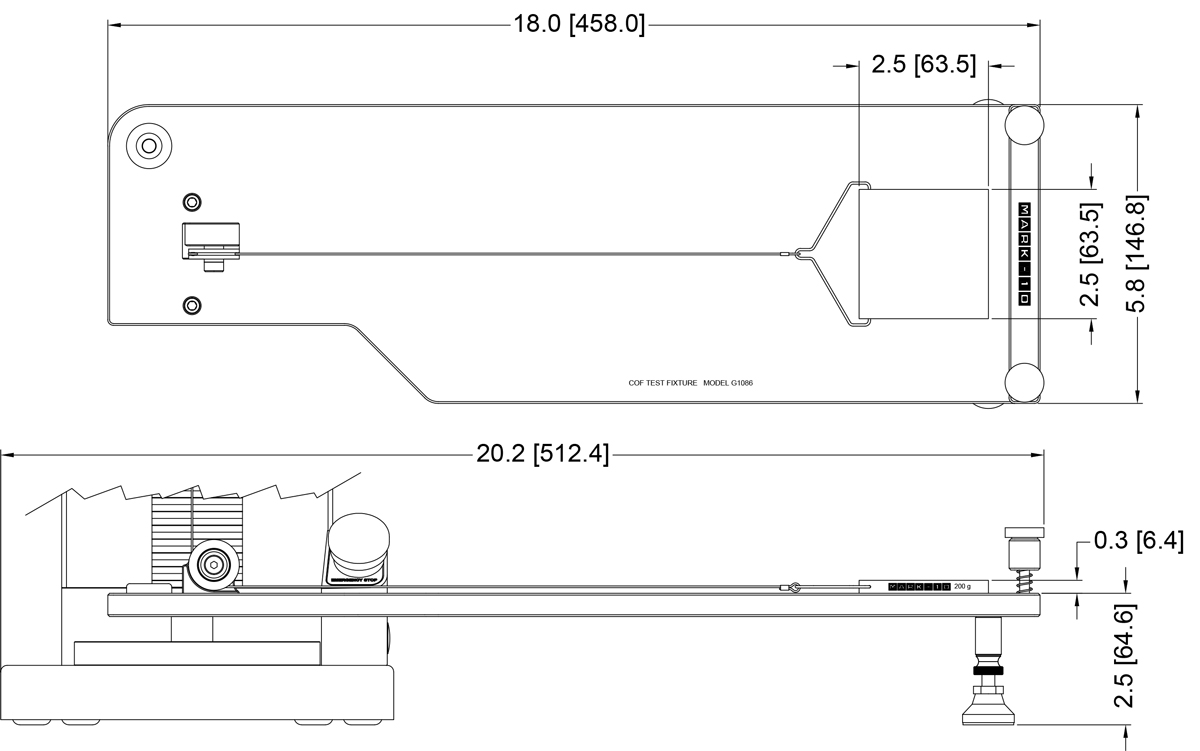

ASTM D1894 Coefficient of Friction Fixture

The G1086 COF fixture is an integral part of a COF measurement system, typically including a motorized test stand and COF gauge. The G1086 can be used for a wide range of materials, ideal for conformance to ASTM D1894 and other relevant standards. Static and kinetic coefficients can be measured using the M5-2-COF gauge.

The fixture includes a large work table with sample clamp, level, 200 g sled, cable, and low-friction pulley. The fixture is directly compatible with the M5-2-COF gauge, ESM303 test stand, and ESM301 motorized test stand.



Send an inquiry

Email us

Call us




Video - YouTube Data Sheet - all grips Solid Models
  Video     User's Guide




gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail



  • Table surface material: 6061 T6 aluminum
  • Sled material: 303 SS
  • Maximum sled travel: 10.5 in (265 mm)
  • Mounts directly to the ESM303 and ESM301 motorized test stand
  • Fixture + Gauge Kit is available (see Ordering Information below)





Model Description US Price
G1086 Coefficient of friction fixture $1,500.00
COF-K1* Kit-coefficient of friction fixture with M5-2-COF gauge $2,550.00
