Wire Crimp Pull Tester Model WT3-201M







The WT3-201M motorized wire crimp pull tester is designed to measure pull-off forces of up to 200 lbF [1 kN] for wire and tube terminations. The tester conforms to numerous UL, ISO, ASTM, SAE, MIL, and other requirements for destructive testing. Non-destructive testing is also possible, such as pulling to a load or maintaining a load for a specified period of time, as per the requirements of UL 486A/B. Programmable pass/fail limits with red and green indicators and audio alerts help identify non-conforming samples.

The tester accommodates most insulation types and wire sizes up to AWG 3 (0.25 in [6.3 mm] OD). Samples can be sent to Mark-10 for evaluation prior to purchase. Auto-start automatically begins the test when the wire sample has been loaded. When the sample breaks, the tester can auto-reverse, output the peak force, store the peak force, and zero the display automatically, thereby increasing testing throughput. Further testing efficiency is achieved via the available Profiles function, through which multiple test setups may be saved and recalled as required.

On-board data storage and statistical calculations is provided for up to 2,000 readings, with available date and time stamp for each saved data point. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

The WT3-201M includes MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Downloads Specifications Optional Equipment
Gallery   Optional Functions   Ordering Information

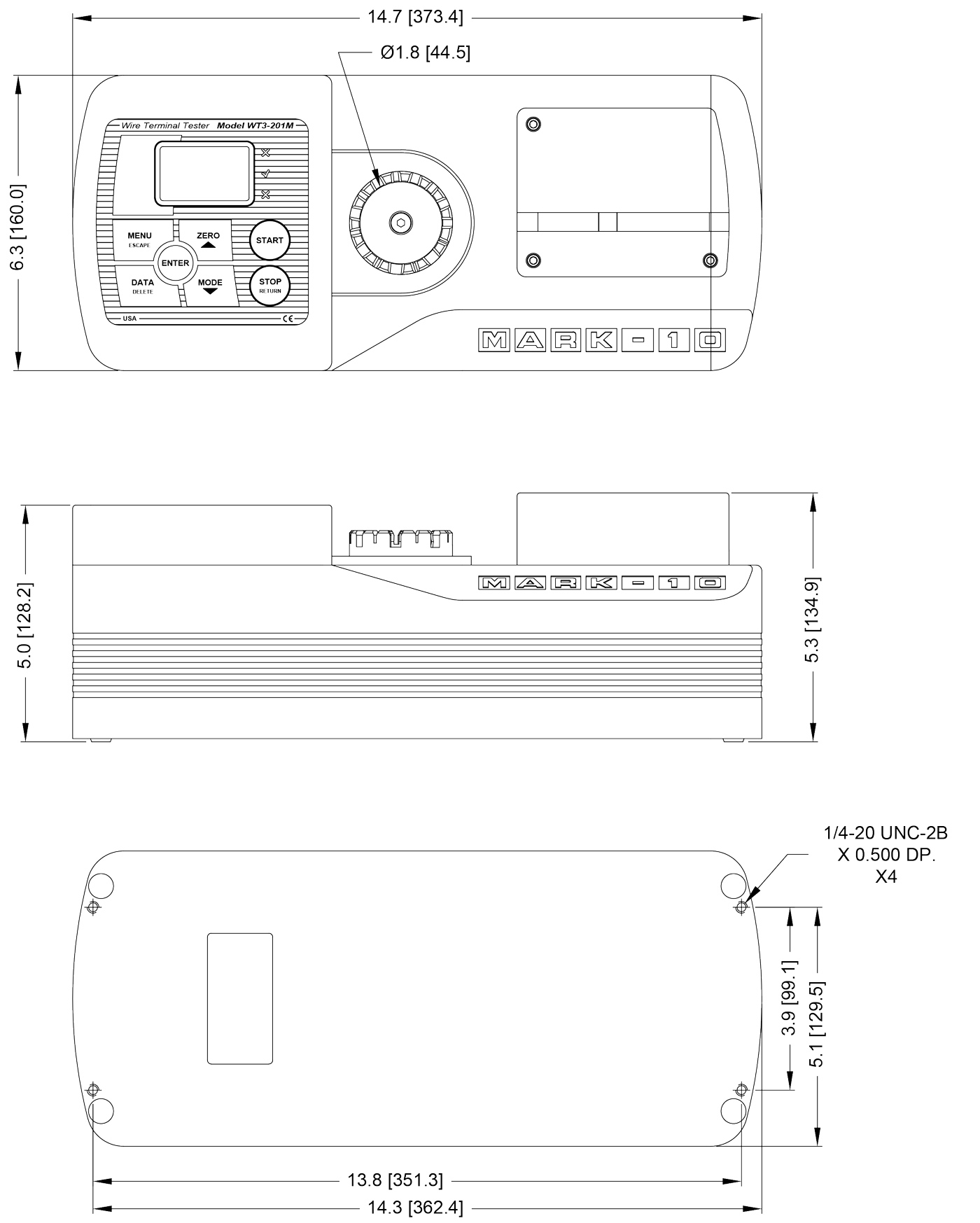

Features   Display Indicators   Dimensions



  Video - YouTube Data Sheet LabVIEW Serial Write / Read VI
Video User's Guide




gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail


gallery thumbnail gallery thumbnail gallery thumbnail



  • Measures real-time and peak force values
  • Selectable test speed, w/high speed approach and reverse
  • Auto-start upon sample insertion
  • Auto-reverse at sample break or load
  • USB, RS-232, Mitutoyo (Digimatic), and analog outputs
  • Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes
  • 2,000-point data memory with statistics, output, and date and time stamp (date and time stamp is optional)
  • Password protection prevents unauthorized changes
  • Pass / fail indicators, audio alerts, and outputs
  • Save and recall up to 500 profiles for various test requirements (optional function) Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions)
  • Date / time stamp for all saved data (optional function)



Capacity x Resolution: 200 x 0.1 lbF | 3200 x 2 ozF | 100 x 0.05 kgF | 1,000 x 0.5 N | 1 x 0.0005 kN
Accuracy: ±0.2% of full scale
Wire gauge range: AWG30 - AWG 3 [0.01 - 0.25 in (0.3 - 6.3 mm) dia.]
Sample length range: Minimum 6.5 in [165 mm], excluding termination
Max. elongation: 1.7 in [43 mm]
Speed range: Test speed: 0.4 - 12.0 in/min [10 - 300 mm/min]
Approach/reverse speed: 13.0 - 96.0 in/min [325 - 2,400 mm/min]
Speed setting accuracy: ±0.2%
Speed variation with load: ±0% [Stepper motor driven]
Power: Universal input 80-240 VAC, 50/60 Hz
Sampling rate: 7,000 Hz
Outputs: USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC at capacity, ±0.25% of full scale.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: 26.5 lb [12.0 kg]
Included items: Power cord, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), and NIST-traceable certificate of calibration.
Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
Warranty: 3 years (see individual statement for further details)





Any of these optional functions may be purchased at time of order or may be enabled in the field at a later date though a simple activation process. A complete options package is also available, including all of the listed features at a discounted price. The tester is shipped in Demo Mode, during which time all available functions are enabled for 160 hours of operation.


Feature Part No. Description
Profiles WF010 Save and recall sets of test parameters, such as speed, pass/fail limits, unit of measurement, etc. Maximum of 500 profiles may be stored.
Pull to load WF011
The tester will stop when the specified load has been reached.
Load holding WF012 The tester will stop and maintain a specified load for a specified period of time.
Date and time stamp WF013 A date and time stamp is applied to each saved data point.
Complete options package WFCOMP Includes all optional functions listed above.





  Ring terminal fixture (WT3002)
Multiple pin sizes are provided, from 1/8" to 3/8" [3.2 to 9.5 mm] dia.
  Carrying case (WT3004-1)
Provides storage space for the WT3-201M tester, optional ring terminal fixture, power cord, USB cable, and accessories.
  Machinable blank terminal fixture (WT3003)
For unique sample shapes and sizes.
  MESUR™gauge software
tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more.
  Calibration kit
Complete set of brackets and hardware for calibration of a wire pull tester. Weights not available from Mark-10.



Model Description US Price
WT3-201M Wire terminal tester, 200 lbF, 110V* $3,950.00
Optional Functions
WF010 Save multiple profiles $800.00
WF011 Pull to load $600.00
WF012 Load holding $900.00
WF013 Date & time stamp $550.00
WFCOMP Complete options package $1,850.00


Additional Items to Consider
CERT Certificate of calibration with data $75.00
15-1004 MESUR™gauge software $495.00
WT3004 Carrying case for WT3-201M $250.00
WT3002 Ring terminal fixture for WT3-201M $195.00
WT3003 Machinable blank terminal fixture $175.00
AC1049 Calibration kit for WT3-201 / WT3-201M (weights not included) $850.00
09-1163 Cable, WT3-201M to RS-232 $75.00
09-1165 Spare USB cable $30.00

* Add suffix 'E' for Euro cord (220V),'U' for UK cord (220V) or 'A' for Australian cord (220V).
Ex: WT3-201ME
