Digital Torque Gauges Series TT03C

Series TT03C digital cap torque gauges are quick and economical solutions for basic handheld cap torque testing. These portable instruments eliminate the need to secure closures in a fixture or more elaborate testing system. A dedicated remote torque sensor with Jacobs chuck is supplied with a universal grip for caps from 0.65 - 1.55 in (16.5 - 39.4 mm) diameter.

The gauges include MESUR™ Lite data acquisition software, for tabulation of continuous or individual data points. One-click export to Excel allows for further data manipulation.

Series TT03C gauges consist of a Series TT03 torque gauge and G1053 cap grip.


Data Sheet User's Guide - Series TT03 Torque Gauges

Use MESURgauge Software to tabulate, graph, and analyze test data (More info)

Gallery Specifications Ordering Information
Features   Optional Equipment   Dimensions




gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail



  • Ergonomic torque sensor with Jacobs chuck
  • Peak torque values saved and displayed
  • High-speed 2,000 Hz sampling rate
  • USB data output of continuous or individual data points
  • Programmable set points with pass/fail indicators
  • Live load bar graphs with set point markers
  • Peak memory for clockwise and counter clockwise readings
  • Set points always displayed
  • Configurable audio alarms and key tones
  • MESUR™ Lite data collection software included
  • Battery or AC operation
  • Safe overload: 150% of capacity
  • CE mark



Accuracy: ±0.5% of full scale
Cap dia. range   0.65 - 1.55 in [16.5 - 39.4 mm]
Sampling rate:   2,000 Hz
Power:   AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life:   Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units:   lbFin, ozFin, Ncm
USB output:   Configurable to 115,200 baud.
Safe overload:   150% of full scale (display shows “OVER” at 110% and above)
Weight:   2.2 lb [1.0 kg]
Included items:   Carrying case, universal voltage AC adapter, battery, chuck key, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge).
Environmental requirements:   40°F - 100°F [5°C - 45°C], <96% humidity (non-condensating)
Warranty:   3 years (see individual statement for further details)





  Table top stand
Includes mounting holes for bench mounting and angle adjustment.
  MESUR™gauge software
tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more.
  Certificate of calibration with data
click here for more information.
  Hand checking bottle cap torque is simple using the TT03C.



  Capacity x Resolution
Model ozFin lbFin Ncm US Price
MTT03C-12 192 x 0.2 12 x 0.01 135 x 0.1 $1,425.00
MTT03C-50 800 x 1 50 x 0.05 570 x 0.5 $1,425.00
MTT03C-100 1600 x 2 100 x 0.1 1150 x 1 $1,425.00

Additional Items to Consider
CERT Certificate of calibration with data $75.00
15-1004 MESUR™gauge software $495.00
09-1165 Spare USB cable $30.00
08-1026 Spare rechargeable battery $20.00
AC1030 Spare AC adapter, 110V $40.00
AC1031 Spare AC adapter, 220V EUR $40.00
AC1032 Spare AC adapter, 220V UK $40.00
AC1035 Spare AC adapter, 220V AUS $40.00
20-1025 Spare chuck key, size KK $10.00

All models include 110V AC adapters. Add suffix ‘E’ for euro plug (220V), ‘U’ for UK plug (220V), or 'A' for Australian plug (220V).
Ex: MTT03-20ZE, MTT03-12U, MTT03-100A



Series TT03 Torque Gauges:

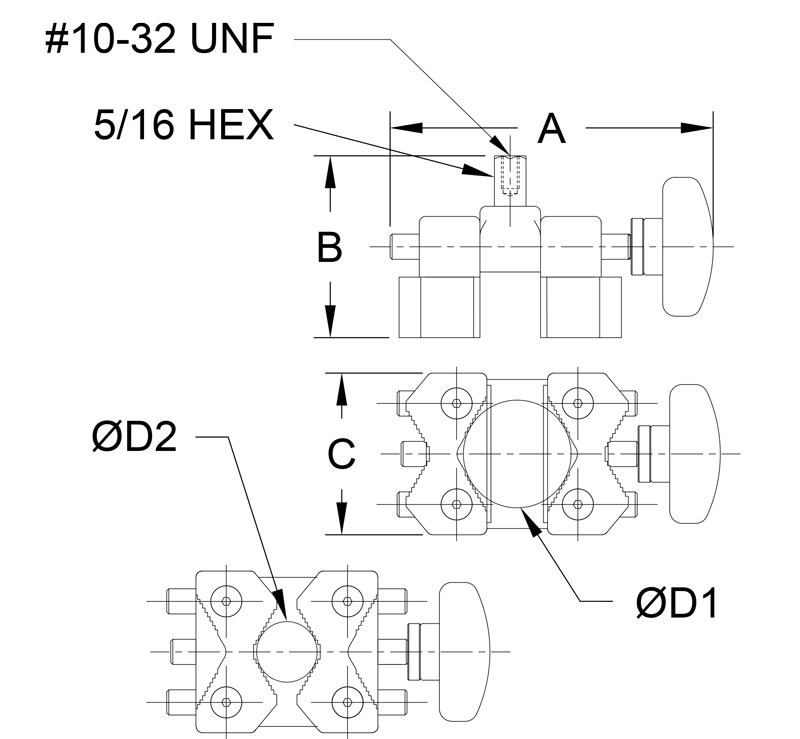

G1053 Universal V-Jaw Grip:

Capacity
lbFin [Nm]
Weight
lb [kg]
A B C ØD1* ØD2*
100
[11.3]
0.39
[0.18]
3.1
[78.7]
2.0
[50.8]
1.6
[40.6]
1.10 - 1.55
[27.9 -39.4]
0.65 - 1.10
[16.5 -27.9]

* Reverse jaws to switch from ØD1 to ØD2
