Cap Torque Tester Series TT05

Series TT05 universal torque testers can be used for a range of applications up to 100 lbFin [11.5 Nm]. The stainless steel loading surface features a matrix of threaded holes, ideal for accommodating specialized fixtures and attachments. The testers' rugged design and simple, intuitive operation allow for use in laboratory and production environments.

Accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.

The TT05 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon sample break, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for torque tool testing, tamper evident closure testing, and other applications.

Series TT05 testers include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data stored in the TT05’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.


Use MESURgauge Software to tabulate, graph, and analyze test data (More info)

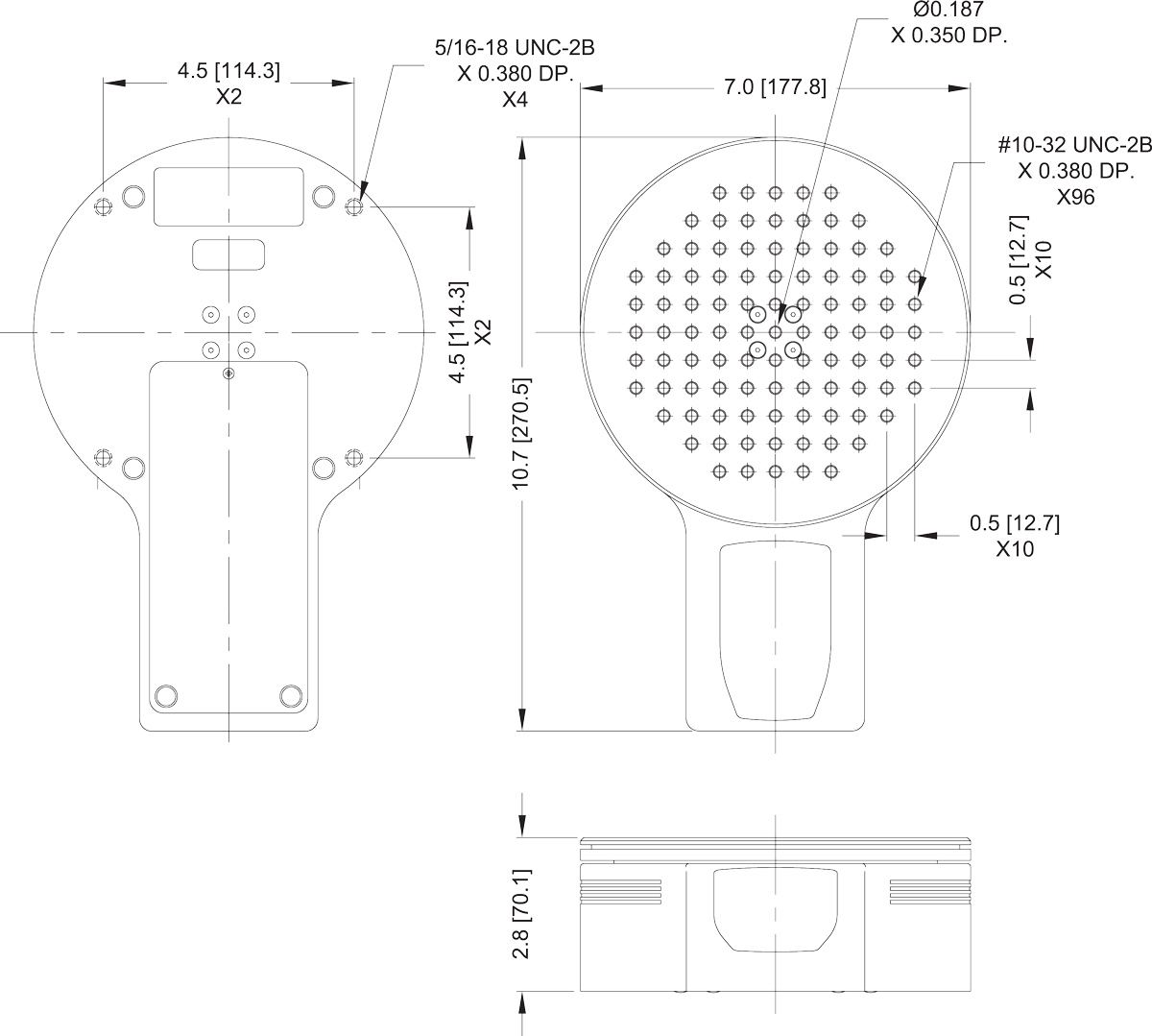

Downloads Specifications Dimensions
Gallery   Optional Equipment
Features   Ordering Information



Data Sheet LabVIEW Serial Write / Read VI
User's Guide     Solid Models




gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail



  • Stainless steel loading plate with #10-32 threaded holes accommodates fixtures and attachments
  • Threaded holes are not drilled through the plate, for protection from debris and liquid
  • USB, RS-232, Mitutoyo, and analog outputs
  • Automatic output, data storage, and zeroing upon sample break helps automate testing processes
  • First / second peak detection for torque tool testing, bottle cap testing, and other applications
  • 1,000-point data memory with statistics and outputs
  • Password protection prevents unauthorized changes
  • Programmable set point indicators and outputs for pass/ fail determination
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • Configurable audio alarms and key tones
  • 5 selectable units of measurement
  • MESUR™ Lite data collection software included



Accuracy: ±0.3% of full scale
Sampling rate:   7,000 Hz
Power:   AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery life:   Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units:   ozFin, lbFin, kgFcm, Nm, Ncm
Output:   USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity.
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Safe overload:   150% of full scale (display shows “OVER” at 110% and above)
Weight:   10.9 lb [4.9 kg]
Included items:   Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user’s guide), and NIST-traceable certificate of calibration (data is available for an additional charge).
Warranty:   3 years (see individual statement for further details)



  MESUR™gauge software
tabulates and plots torque vs. time or travel. Also calculates statistics, exports to Excel, and more. Requires output cable. More info...
  Certificate of calibration with data
click here for more information.
  Carrying case
Provides storage space for the TT05 tester, gripping jaws, AC adapter, and accessories.



  Capacity x Resolution
Model lbFin ozFin kgFmm Ncm Nm US Price
MTT05-12 12 x 0.005 192 x 0.1 14 x 0.01 135 x 0.1 1.35 x 0.001 $1,195.00
MTT05-25 25 x 0.01 400 x 0.2 28 x 0.02 290 x 0.2 2.9 x 0.002 $1,195.00
MTT05-50 50 x 0.02 800 x 0.5 58 x 0.05 570 x 0.5 5.7 x 0.005 $1,195.00
MTT05-100 100 x 0.05 1600 x 1 116 x 0.1 1150 x 0.5 11.5 x 0.005 $1,195.00

Additional Items to Consider
CERT Certificate of calibration with data $75.00
CT002 Carrying case for TT05 $195.00
15-1004 MESUR™gauge software $495.00
09-1165 Spare USB cable $30.00
08-1026 Spare rechargeable battery $20.00
AC1030 Spare AC adapter, 110V $40.00
AC1031 Spare AC adapter, 220V EUR $40.00
AC1032 Spare AC adapter, 220V UK $40.00
AC1035 Spare AC adapter, 220V AUS $40.00

All models include 110V AC adapters. Add suffix ‘E’ for euro plug (220V), ‘U’ for UK plug (220V), or ‘A’ for Australian plug (220V).
Ex: MTT05-12E, MTT05-50U, MTT05-100A
