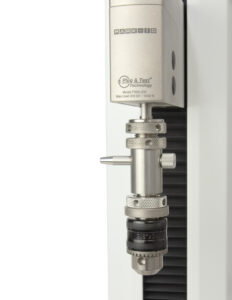

Jacobs Chuck Pin Vise Grips
G1010, G1010-1, G1010-2
These grips are suitable for holding round samples such as wire or tubing.
Three sizes are available. Compatibile with force gauges,
load cells, and test frames.
Features
- Jacobs chuck secures bits, attachments, and samples
- Select from three chuck sizes
Specifications
| Model | Capacity lbF [N] |
Weight lb [kg] |
Shipping Weight lb [kg] |
Chuck Key Size | HS Code | ECCN | Country of Origin |
|---|---|---|---|---|---|---|---|
| G1010-1 | 30 [150] |
0.25 [0.11] |
1 [0.50] |
KGA | 9024800000 | EAR99 | USA |
| G1010 | 30 [150] |
0.35 [0.16] |
1 [0.50] |
KGA | |||
| G1010-2 | 30 [150] |
0.66 [0.30] |
2 [0.90] |
KK |
Optional Equipment
|
Swivel adapter Swiveling action provides proper sample alignment in pull testing applications. |
|
Eye end adapters Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges. |
Dimensions
IN [MM]
| Model | ØA |
|---|---|
| G1010-1 | 0.028 - 0.25 [0.7 - 6.3] |
| G1010 | 0.062 - 0.375 [1.6 - 9.5] |
| G1010-2 | 0.078 - 0.5 [2.0 - 12.7] |
Ordering Information
| Model | Description | US Price |
|---|---|---|
| G1010-1 | Jacobs chuck pin vise, 0.028"-0.250" dia. | $130.00 |
| G1010 | Jacobs chuck pin vise, 0.062"-0.375" dia. | $140.00 |
| G1010-2 | Jacobs chuck pin vise, 0.078"-0.500" dia. | $150.00 |
| AC1123 | Spare chuck key for G1010-2, size KK | $10.00 |
| AC1124 | Spare chuck key for G1010 / G1010-1, size KGA | $10.00 |
| Additional Items to Consider | ||
| G1018-1 | Swivel adapter, #10-32 | $110.00 |
Includes a chuck key and #10-32 M/M stud with jam nuts.
