MF100 USB Sensor Interface

View All

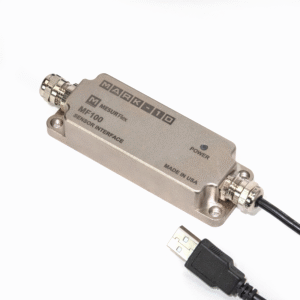

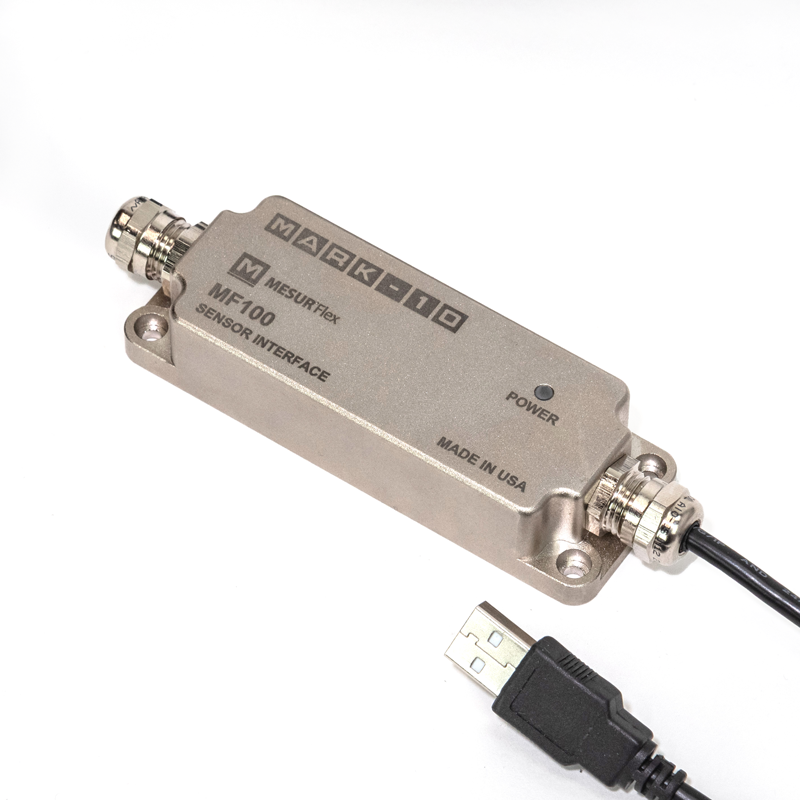

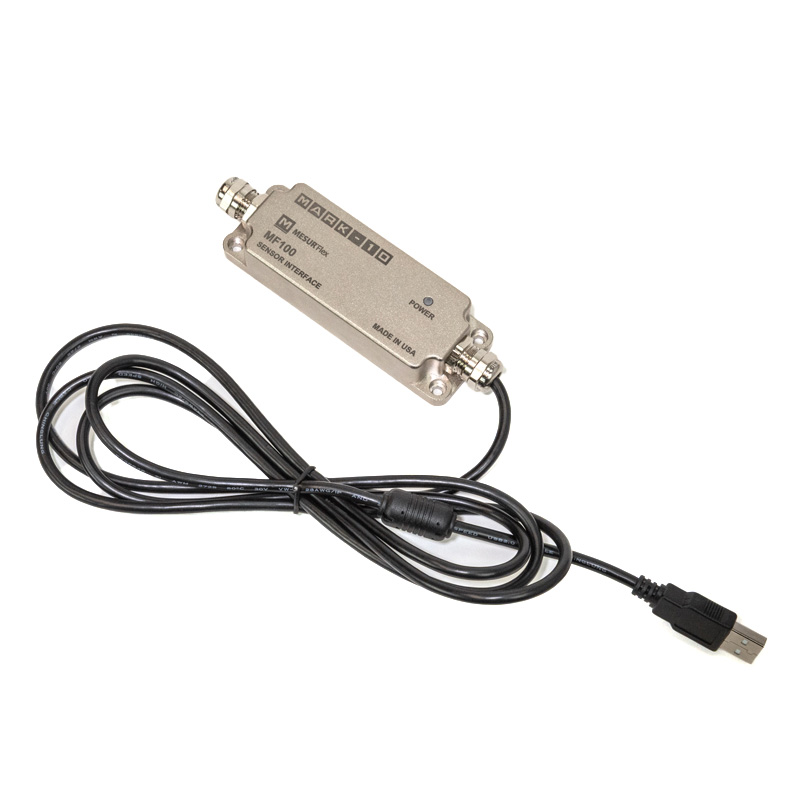

MF100 USB Sensor Interface

Connect strain gage–based load cells, force sensors, and torque sensors to a PC or USB hub using the Model MF100 USB Sensor Interface and MESUR®Flex configuration software.

MESUR®Flex supports a wide range of applications in weighing, force, and torque measurement. It accommodates force sensors from 0.12 to 750,000 lbF (0.5 N to 4,000 kN) and torque sensors from 10 ozFin to 40,000 lbFft (7 Ncm to 57,000 Nm). A built-in screw terminal block allows quick, solder-free connection of sensor wires to the interface.

Through MESUR®Flex, select the sensor's capacity, add a unique identifier, and calibrate the sensor through a step-by-step wizard. The software contains basic settings for changing measurement units, viewing peak, real-time, and time-averaged data. Or, control the sensor and acquire data via an extensive library of serial commands, ideal for integration into a data collection system.

Buy Now

Have a Question?

Features

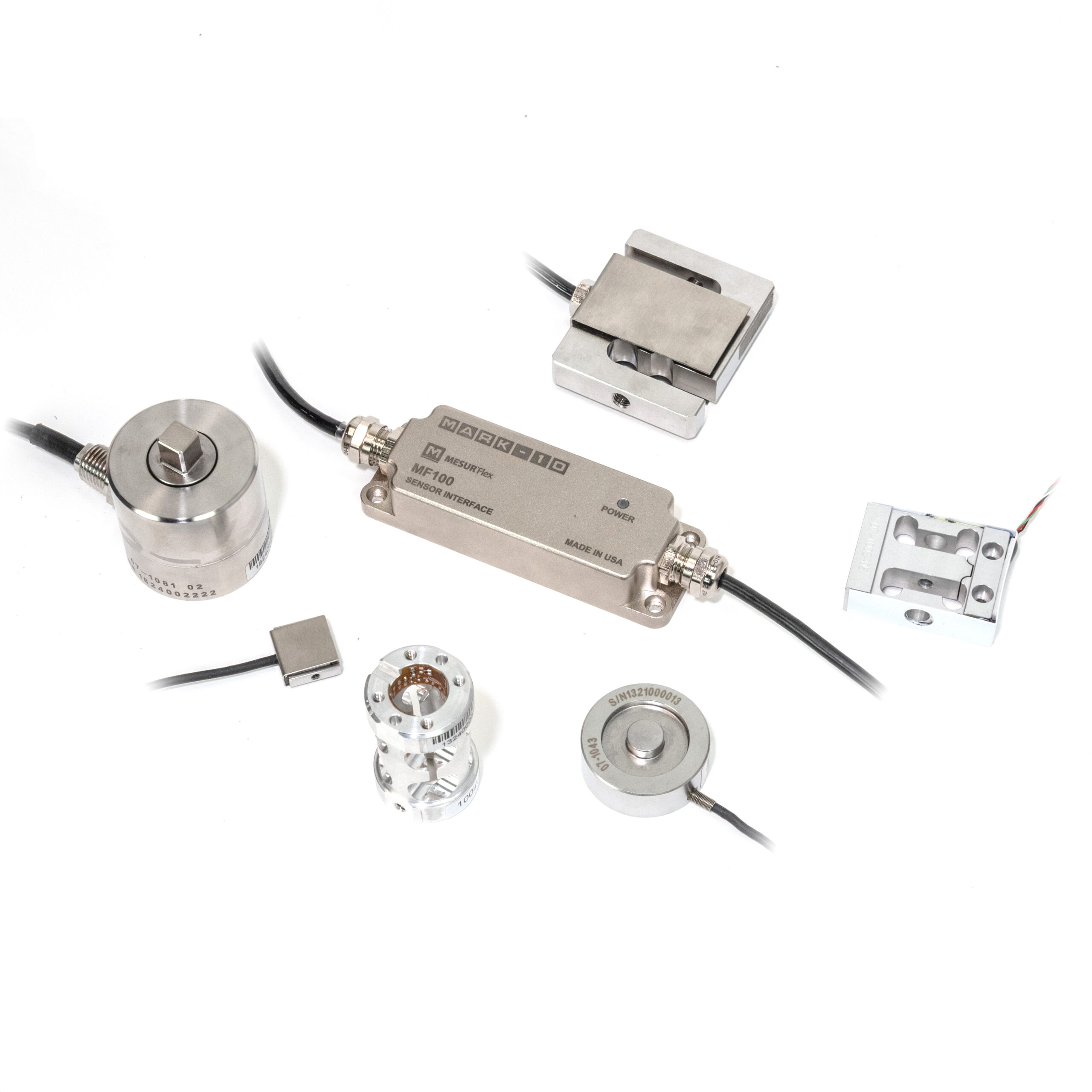

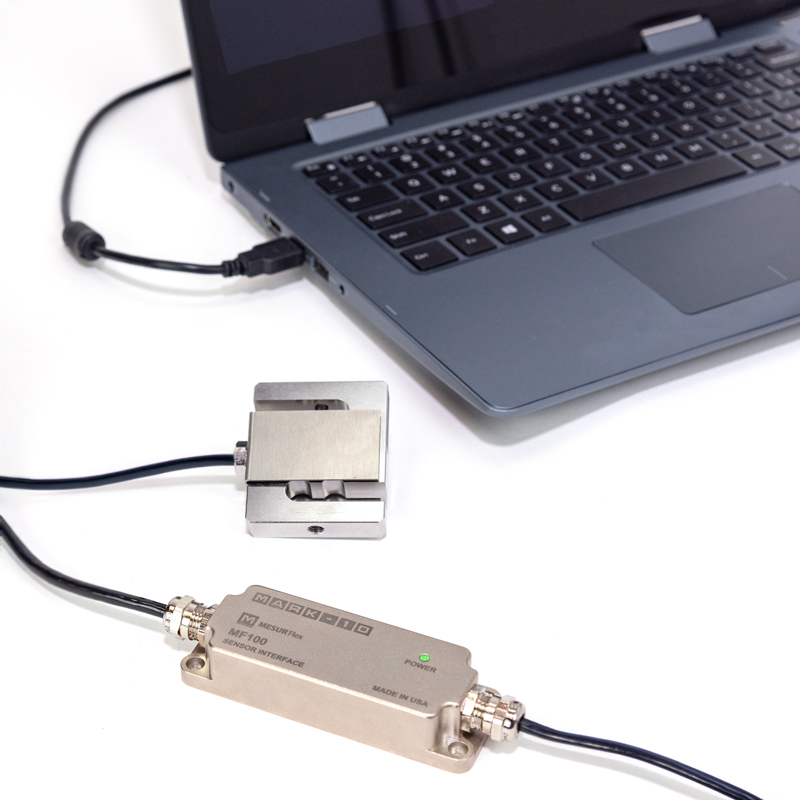

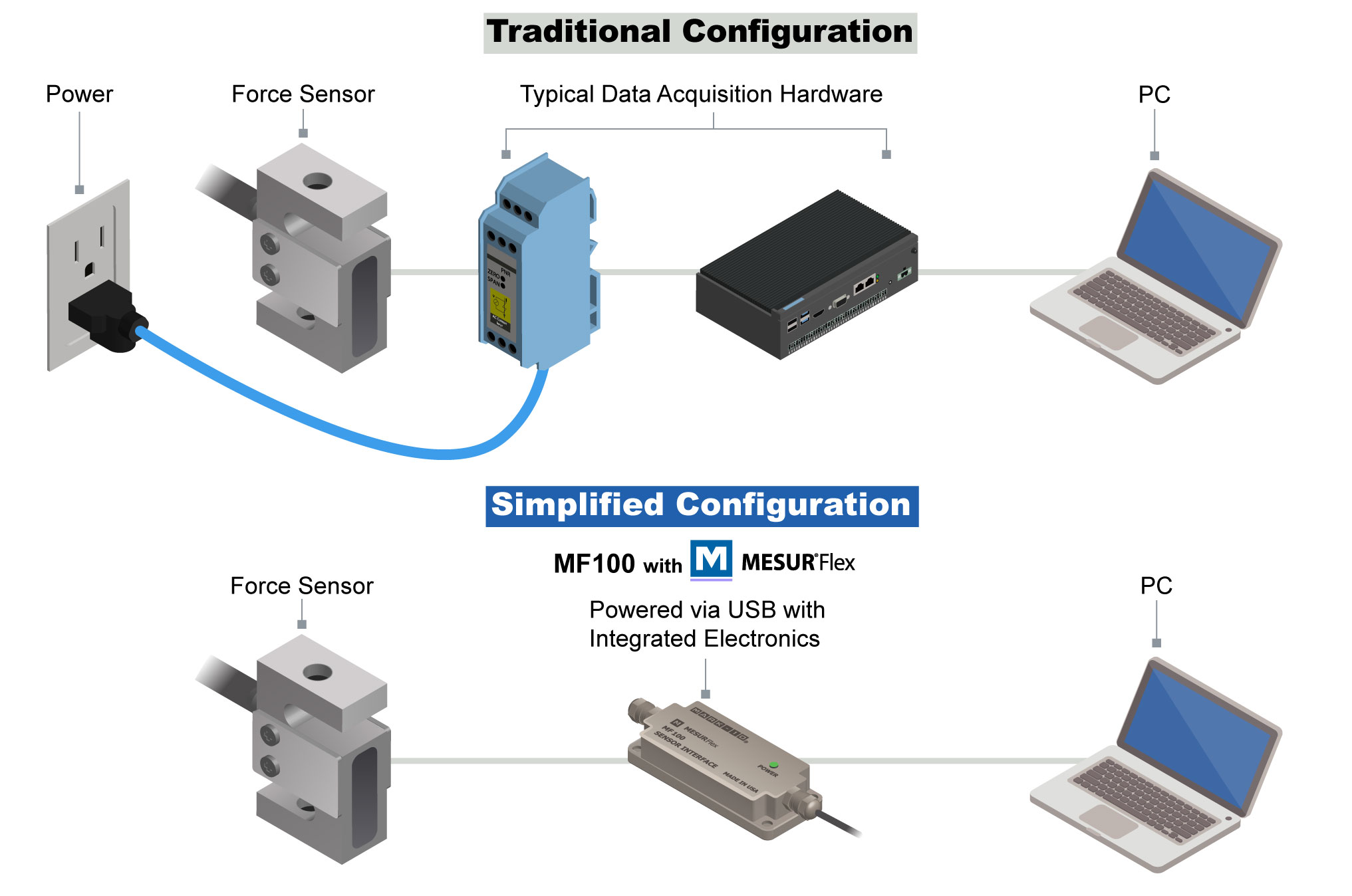

Connect strain gage-based load cells, force sensors, and torque sensors to a PC

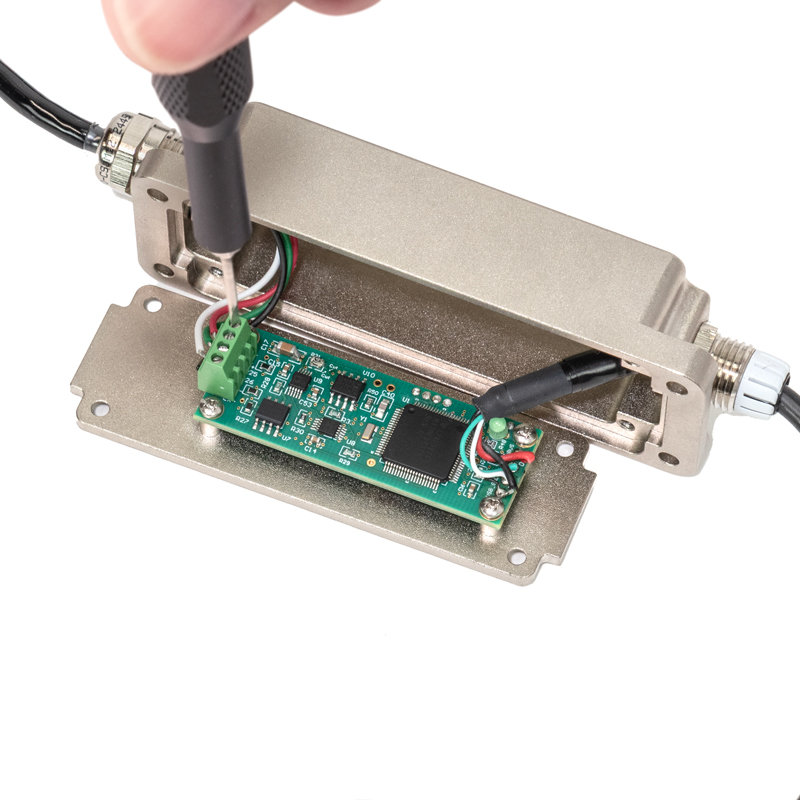

Screw terminal block allows for easy connection of sensor wires

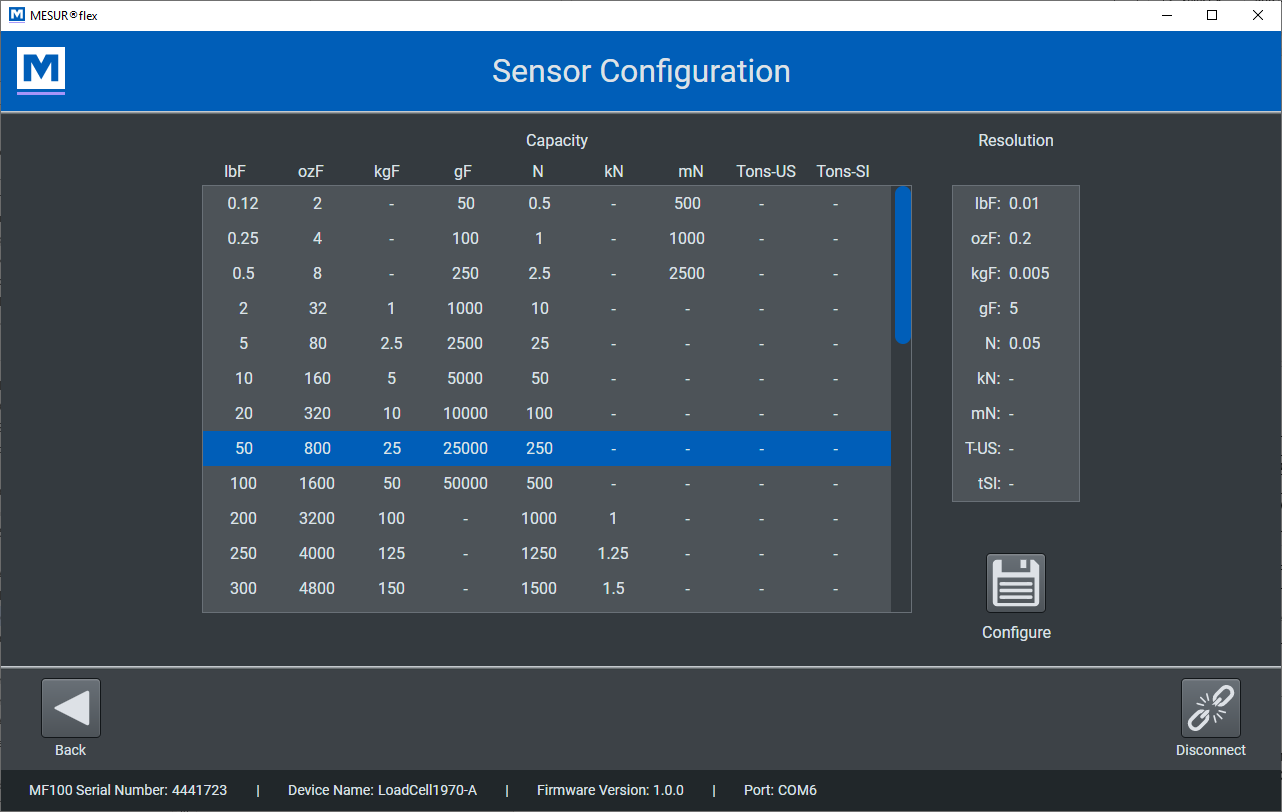

Configure sensor capacity, resolution, and identifier via MESUR®Flex

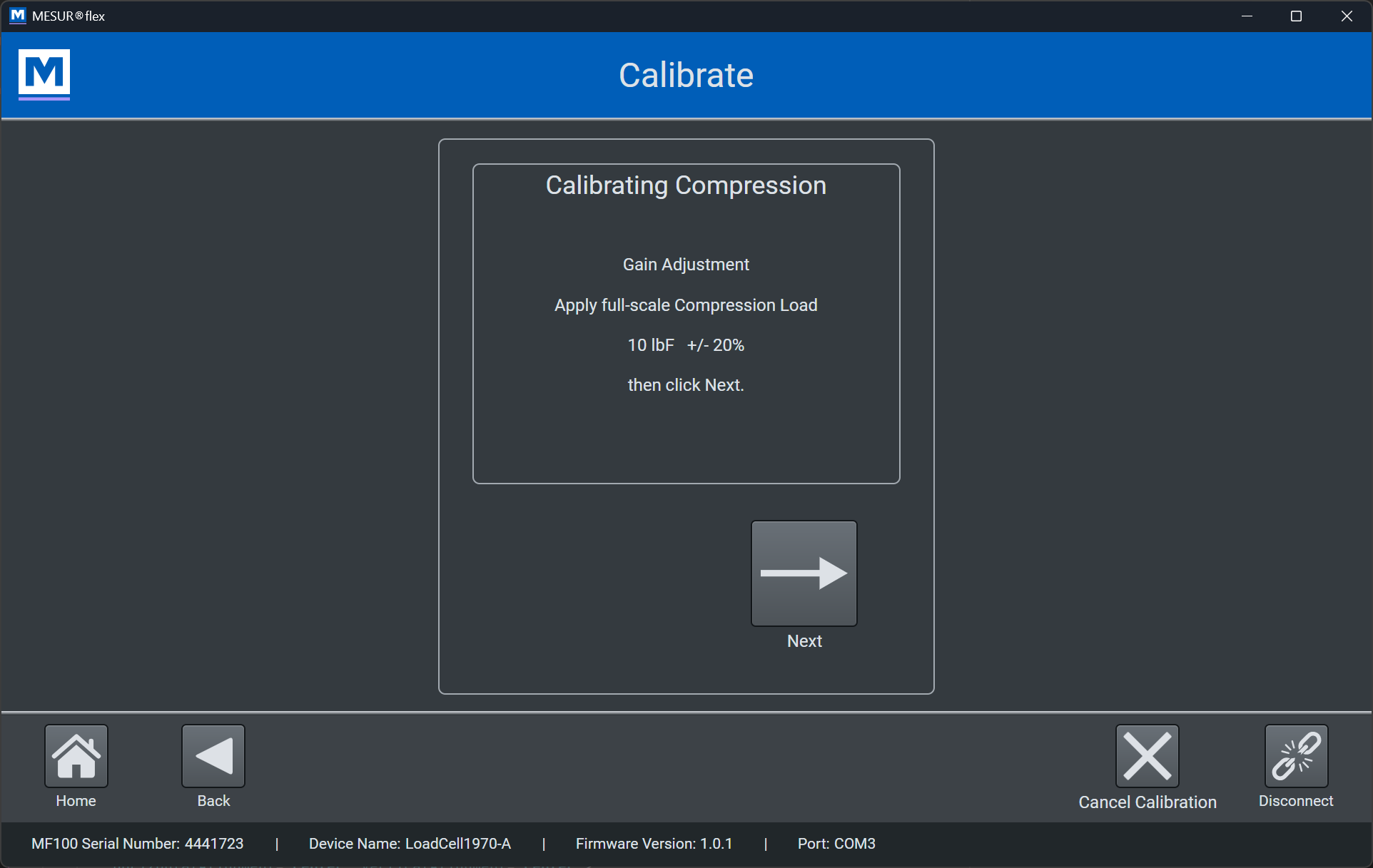

Calibrate the sensor on a PC with an intuitive step-by-step interface in MESUR®Flex

Specifications

Sensor Requirements:

Type: Full bridge
Resistance: 300 - 1000 ohms
Sensitivity: 1–3mV/V full scale

Other Specifications:

Force range: 0.12 lbF - 500 T [0.5 N - 5,000 kN]
Torque range: 10 ozFin - 40,000 lbFft [7 Ncm - 57,000 Nm]
Load accuracy: ±0.1% of full scale + sensor
Load sampling rate: 7,000 Hz
Data output rate: Up to 500 Hz, user-configurable
Weight: 0.4 lb [0.2 kg]
Shipping weight: 2.0 lb [0.9 kg]
Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensing
Conformance: CE, UKCA
HS code: 9024100000
ECCN: EAR99
Warranty: 3 years (see individual statement for further details)
Country of origin: USA

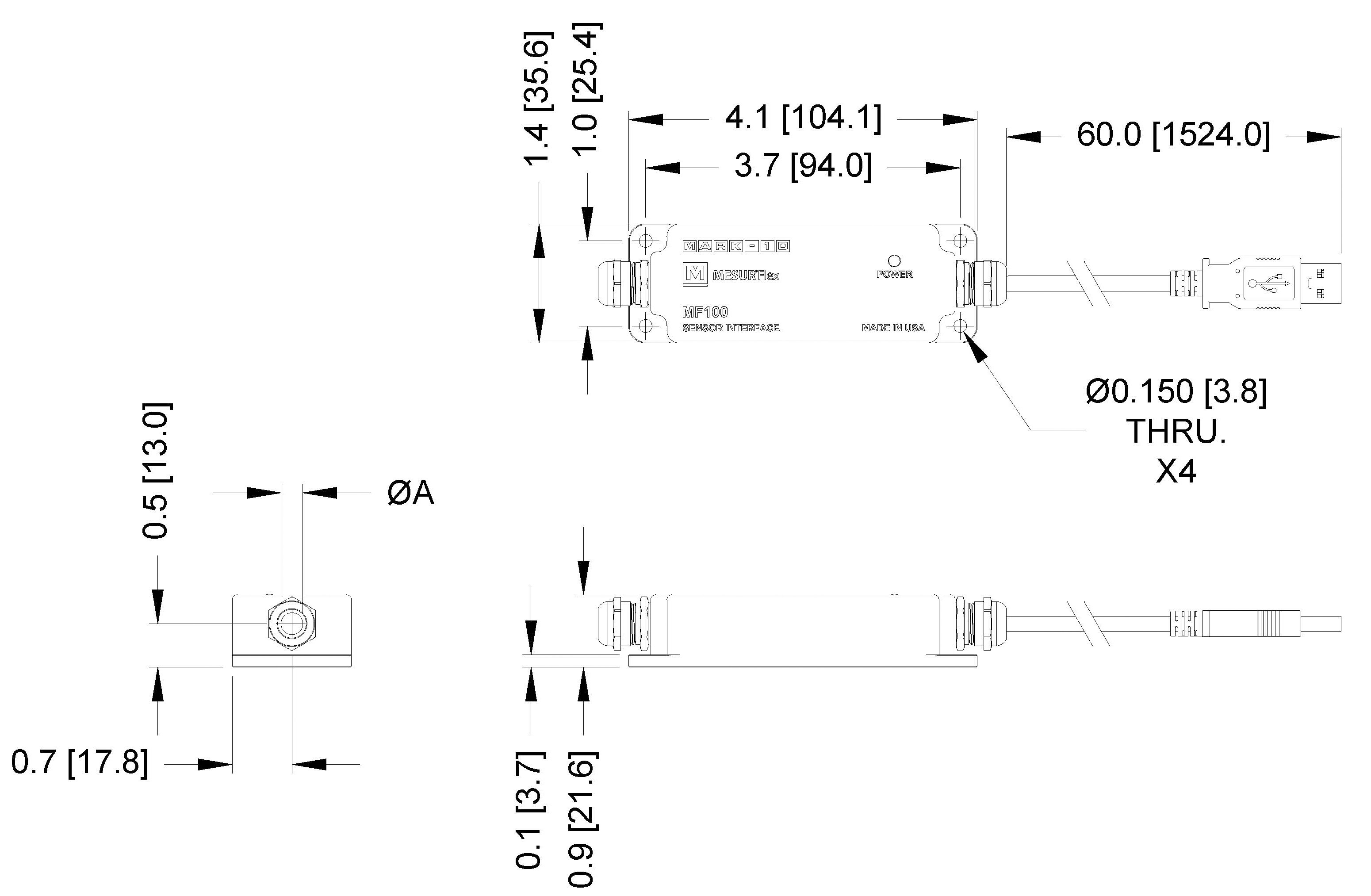

Dimensions

IN [MM]

MESUR^®Flex

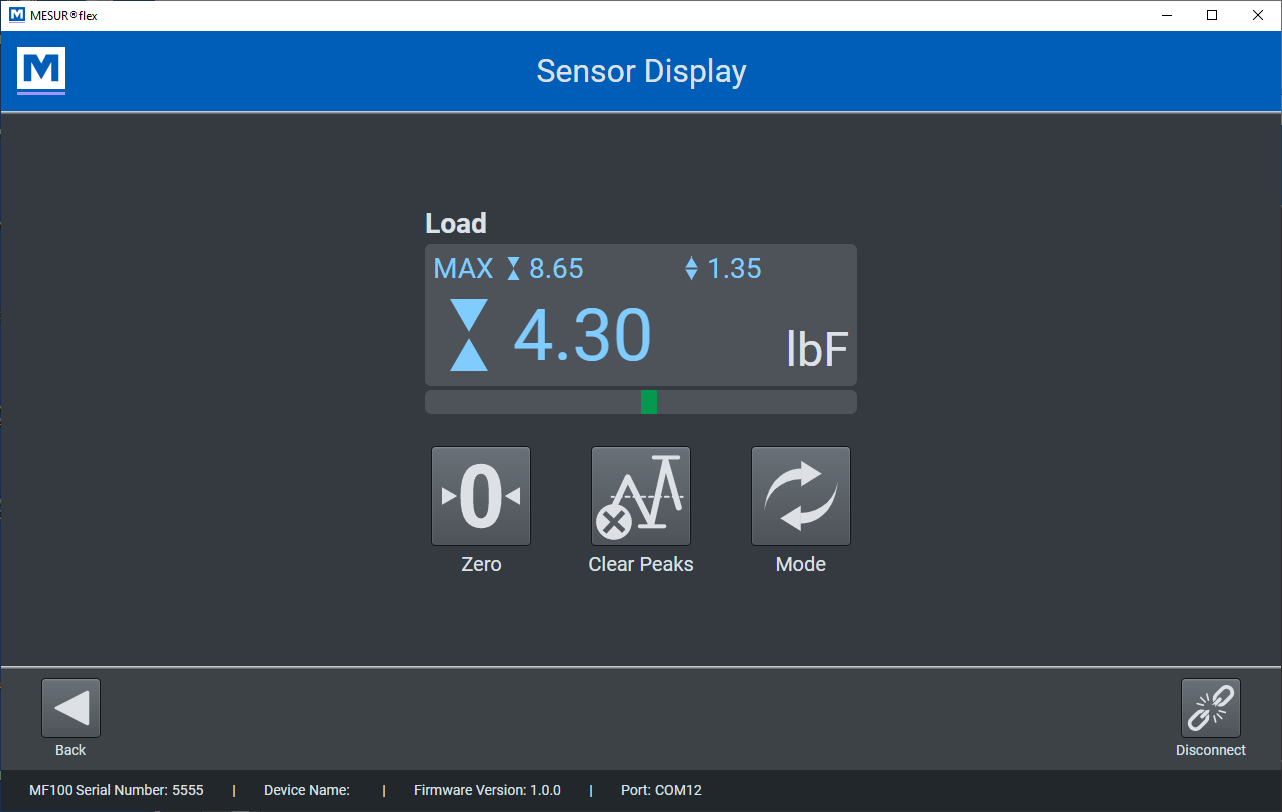

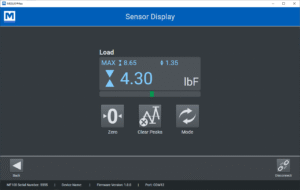

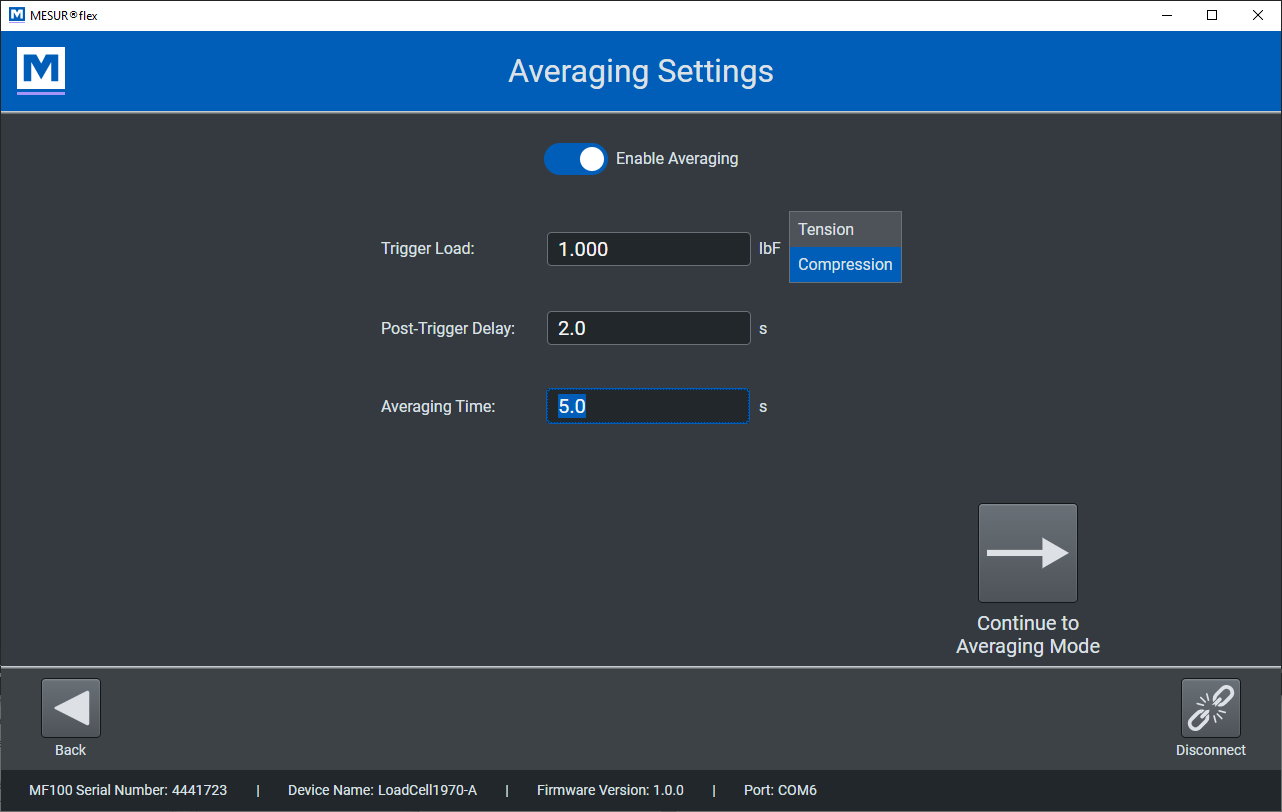

With the included MESUR®Flex software, select the sensor's capacity, add a unique identifier, and calibrate the sensor through a step-by-step wizard. The software contains basic settings for changing measurement units, viewing peak, real-time, and time-averaged data. Or, control the sensor and acquire data via an extensive library of serial commands, ideal for integration into a data collection system.

Force Capacity x Resolution

* Note: T-US = US ton, t-SI = metric ton

Capacity x Resolution
lbF	ozF	kgF	gF	N	kN	mN	T-US	t-Sl
0.12 x 0.00002	2 x 0.0005	-	50 x 0.01	0.5 x 0.0001	-	500 x 0.1	-	-
0.25 x 0.00005	4 x 0.001	-	100 x 0.02	1 x 0.0002	-	1000 x 0.2	-	-
0.5 x 0.0001	8 x 0.002	-	250 x 0.05	2.5 x 0.005	-	2500 x0.5	-	-
2 x 0.0005	32 x 0.005	1 x 0.0002	1000 x 0.2	10 x 0.002	-	-	-	-
5 x 0.001	80 x 0.02	2.5 x 0.0005	2500 x 0.5	25 x 0.005	-	-	-	-
10 x 0.002	160 x 0.02	5 x 0.001	5000 x 1	50 x 0.01	-	-	-	-
20 x 0.005	320 x 0.05	10 x 0.002	10000 x 2	100 x 0.02	-	-	-	-
50 x 0.01	800 x 0.2	25 x 0.005	25000 x 5	250 x 0.05	-	-	-	-
100 x 0.02	1600 x 0.2	50 x 0.01	50000 x 10	500 x 0.1	-	-	-	-
200 x 0.05	3200 x 0.5	100 x 0.02	-	1000 x 02	1 x 0.0002	-	-	-
250 x 0.05	4000 x 1	125 x 0.02	-	1250 x 0.2	1.25 x 0.0002	-	-	-
300 x 0.05	4800 x 1	150 x 0.2	-	1500 x 0.2	1.5 x 0.0002	-	-	-
500 x 0.1	8000 x 2	250 x 0.05	-	2500 x 0.5	2.5 x 0.0005	-	-	-
750 x 0.2	12000 x 2	400 x 0.1	-	4000 x 1	4 x 0.001	-	-	-
1000 x 0.2	16000 x 2	500 x 0.1	-	5000 x 1	5 x 0.001	-	-	-
1500 x 0.2	24000 x 5	750 x 0.2	-	7500 x 2	7.5 x 0.002	-	-	-
2000 x 0.5	32000 x 5	1000 x 0.2	-	10000 x 2	10 x 0.002	-	-	-
5000 x 1	-	2500 x 0.5	-	-	25 x 0.005	-	2.5 x 0.0005	2.5 x 0.0005
10000 x 2	-	5000 x 1	-	-	50 x 0.01	-	5 x 0.001	5 x 0.001
15000 x 2	-	7500 x 2	-	-	75 x 0.02	-	7.5 x 0.002	7.5 x 0.002
20000 x 5	-	10000 x 2	-	-	100 x 0.02	-	10 x 0.002	10 x 0.002
25000 x 5	-	10000 x 2	-	-	100 x 0.02	-	10 x 0.002	10 x 0.002
30000 x 5	-	15000 x 2	-	-	150 x 0.02	-	15 x 0.002	15 x 0.002
50000 x 10	-	25000 x 5	-	-	250 x 0.05	-	25 x 0.005	25 x 0.005
75000 x 20	-	40000 x 10	-	-	400 x 0.1	-	40 x 0.01	40 x 0.01
100000 x 20	-	50000 x 10	-	-	500 x 0.1	-	50 x 0.01	50 x 0.01
150000 x 20	-	75000 x 20	-	-	750 x 0.2	-	75 x 0.02	75 x 0.02
200000 x 50	-	100000 x 20	-	-	1000 x 0.2	-	100 x 0.02	100 x 0.02
250000 x 50	-	100000 x 20	-	-	1000 x 0.2	-	100 x 0.02	100 x 0.02
300000 x 50	-	150000 x 20	-	-	1500 x 0.2	-	150 x 0.02	150 x 0.02
500000 x 100	-	250000 x 50	-	-	2500 x 0.5	-	250 x 0.05	250 x 0.05
750000 x 200	-	400000 x 100	-	-	4000 x 1	-	400 x 0.1	400 x 0.1
1000000 x 200	-	500000 x 100	-	-	5000 x 1	-	500 x 0.1	500 x 0.1

Torque Capacity x Resolution

Capacity x Resolution
lbFin	ozFin	lbFft	Ncm	Nm	Nmm	kgFmm	gFcm	kgFm	kgFcm
-	10 x 0.001	-	7 x 0.001	-	70 x 0.1	7 x 00.1	700 x0.01	-	-
-	20 x 0.002	-	14 x 0.002	-	140 x 0.2	14 x 00.2	1400 x 0.2	-	-
-	50 x 0.005	-	35 x 0.005	-	350 x 0.5	35 x.005	3500 x 0.5	-	-
-	100 x 0.01	-	70 x 0.01	-	700 x 0.1	70 x 0.01	7000 x 1	-	-
-	1000 x 0.02	-	700 x 0.1	-	7000 x 1	700 x0.02	70000 x 10	-	-
12 x 0.002	192 x 0.05	-	135 x 0.02	1.35 x 0.0002	-	-	-	-	13.5 x 0.002
20 x 0.005	320 x 0.1	-	220 x 0.05	2.2 x 0.0005	-	-	-	-	22 x 0.005
25 x 0.01	400 x 0.2	-	290 x 0.05	2.9 x 0.0005	-	-	-	-	29 x 0.005
50 x 0.01	800 x 0.2	-	570 x 0.01	5.7 x 0.001	-	-	-	-	57 x 0.01
100 x 0.02	1600 x 0.2	-	1150 x 0.2	11.5 x 0.002	-	-	-	-	115x 0.02
150 x 0.02	-	12.5 x 0.002	1700 x 0.2	17 x 0.002	-	1700 x 0.2	-	-	-
200 x 0.05	-	16 x 0.02	2200 x 0.5	22 x 0.005	-	2200 x 0.2	-	-	-
250 x 0.5	-	20 x 0.05	2900 x 0.5	29 x 0.005	-	2900 x 0.2	-	-	-
400 x 0.1	-	32 x 0.05	4500 x 1	45 x 0.01	-	4500 x 1	-	-	-
500 x 0.1	-	40 x 0.01	5700 x 1	57 x 0.01	-	5700 x 1	-	-	-
600 x 0.1	-	50 x 0.01	6900 x 1	69 x 0.01	-	6900 x 1	-	-	-
1000 x 0.2	-	80 x 0.02	11500 x 2	115 x 0.02	-	11500 x 2	-	-	-
1500 x 0.2	-	125 x 0.2	17000 x 2	170 x 0.02	-	17000 x 2	-	-	-
2000 x 0.5	-	150 x 0.2	22000 x 5	220 x 0.05	-	22000 x 5	-	-	-
2500 x 0.5	-	200 x 0.5	29000 x 5	290 x 0.05	-	29000 x 5	-	-	-
5000 x1	-	400 x 0.1	57000 x 10	570 x 0.01	-	57000 x 10	-	-	-
6000 x 1	-	500 x 0.1	69000 x 10	690 x 0.01	-	69000 x 10	-	-	-
10000 x 2	-	800 x 0.2	115000 x 20	1150 x 0.2	-	-	-	115 x 0.02	-
15000 x 2	-	1250 x 0.2	170000 x 20	1700 x 0.2	-	-	-	170 x 0.02	-
20000 x 5	-	2000 x 0.5	220000 x 50	2200 x 0.5	-	-	-	220 x 0.05	-
50000 x 10	-	4000 x 1	570000 x 100	5700 x 1	-	-	-	570 x 0.1	-
100000 x 20	-	8000 x2	-	11500 x 2	-	-	-	1150 x 0.2	115000 x 20
150000 x 20	-	12500 x 2	-	17000 x 2	-	-	-	1700 x 0.2	170000 x 20
200000 x 50	-	15000 x 2	-	22000 x 5	-	-	-	2200 x 0.5	220000 x 50
500000 x 100	-	40000 x 10	-	57000 x 10	-	-	-	5700 x 1	570000 x 100
